$3,799.00
UD100-G01-B50 Bulk Pack, 50 units
Features Toshiba Bluetooth Software

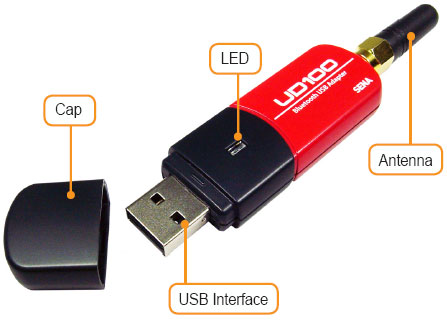

The Parani-UD100 is a class 1 type Bluetooth USB adapter that supports 300 meters of wireless transmission distance by default. The working distance can be further extended up to 1000 meters using interchangeable optional replacement antenna. Thanks to its longer communication distance than other regular Bluetooth USB adapters, it is suitable for industrial or special applications. Parai-UD100 is compatible with other SENA Bluetooth devices perfectly.
The Parani-UD100 is a class 1 type Bluetooth USB adapter that supports 300 meters of wireless transmission distance by default. The working distance can be further extended up to 1000 meters using optional replacement antenna. Thanks to its longer communication distance than other regular Bluetooth USB adapters, it is suitable for industrial or special applications. Parai-UD100 is compatible with other SENA Bluetooth devices perfectly.
SENA offers Industrial Bluetooth product line that includes Bluetooth Serial Adapters, Bluetooth Serial Modules, Bluetooth Access Points, and Bluetooth USB adapter. Bluetooth Serial products incorporate advanced features such as Bluetooth 1.2/2.0 Protocol Stack that includes Adaptive Frequency-hopping spread spectrum (AFH), software-free configuration support, Pairing feature, and flexible power options.
<li> Bluetooth Access Points connect up to 28 Bluetooth devices to the 10/100 Base-T Ethernet network. SENA’s Bluetooth USB Adapter is suitable for industrial or special applications thanks to its longer communication distance than other regular Bluetooth USB adapters
APPLICATIONS/SUPPORTS
# Any device that accepts standard USB
# Parani-SAT-G01R 1.0dBi Stub Antenna
# Parani-DAT-G01R 3.0dBi Dipole Antenna
# Parani-DAT5-G01R 5.0dBi Dipole Antenna
# Parani-PAT-G01R 9.0dBi Patch Antenna
# Parani-SEC-G01R 15cm antenna extension cable
See Reference Table Below…………..
Parani-UD100
Standards
Bluetooth 2.0 EDR Class 1
USB 2.0
Max Transfer Rate
3 Mbps (EDR)
Frequency Range
2.402 ~ 2.480GHz
Transmit Output Power
19dBm ( 6dBm EDR) E.I.R.P
Receive Sensitivity
Basic 1Mbps: -88 dBm
EDR 2Mbps: -87dBm
EDR 3Mbps: -82dBm
Antenna Connector
RP-SMA
Antenna Gain
Default Stub Antenna: 1 dBi
Optional Dipole Antennas: 3 dBi & 5 dBi
Optional Patch Antenna: 9 dBi
Working Distance
(In Open Field)
Stub antenna – Stub antenna: 300 m
Dipole (3 dBi) – Dipole (3 dBi) : 400 m
Dipole (5 dBi) – Dipole (5 dBi): 600 m
Patch antenna – Patch antenna: 1 km
* working distance can vary depending on install environment
Bluetooth stack software
BlueSoleil
Bluetooth Profiles
DUN, FAX, SPP, HID, FTP, OPP, A2DP, AVRCP, HSP, HFP, PAN, BPP
Computer OS Support
Windows XP/Vista/7 (32/64bit)
Linux (3rd party driver required)
MAC OS X (MAC OS X driver required)
Size
72(L) x 22(W) x 10(H) mm
Operating Temperature
-20 ~ 70℃
Storage Temperature
-40 ~ 85℃
Humidity
90% Non-condensing
Regulatory Approvals
FCC, CE, TELEC, KCC, IC, Bluetooth SIG
SIG QDID
Warranty
1 year Limited Warranty
