$396.38

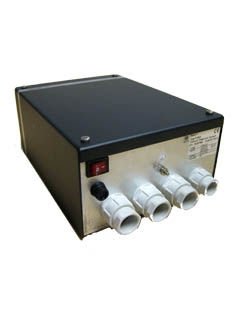

TT-01-80119410 Thrane Sailor N163S Universal Power Supply, Universal
The SAILOR N163S Power Supply is a sturdy and reliable work horse, featuring automatic change-over from AC mains to 24V DC, ensuring continued power.
The SAILOR N163S Power Supply for the SC4000 series terminals.
This power supply supports these and any device requiring continuous power within the specifications.
Recommended for the following SAILOR products from Thrane & Thrane:
• All VHF radios
• AIS
• SSAS systems
• Inmarsat-C GMDSS
• Inmarsat mini-C SSA
• Inmarsat mini-C LRIT
• Inmarsat mini-M
• Thrane Iridium SC 4000
TT-01-80119410
PHYSICAL
Dimensions(with cable seals): 245 x 168 x 97mm
Dimensions(w/out cable seals): 225 x 168 x 97mm
Weight: 5.0kg(11.0lb)
ENVIRONMENTAL
Operating Temperature Range: -15°C to 55°C 93% Relative humidity.
Storage Temperature: -20°C to 70°C 93% Relative humidity
INPUT:
Voltage: 110/127V AC Fuse T2A,
Voltage: 220/237V AC Fuse T1A,
Power: Max 220W
160VA 50/60Hz
OUTPUT:
Voltage: 24VDC unregulated
Power: 170W
Alarm output: Dry contact NO/NC
Absolute maximum voltage allowed on the battery input is 32V.
