Product Description
TT-01-406080A-001 Sailor 6080 Wall Mount Tray
The TT-6080A AC/DC Power Supply can deliver 300 W output power on average with a peak of 370 W for a minimum of 2 minutes.
The connector panel is protected by a transparent lid.
Use this tray To secure an installation with heavy cables.
When mounted vertically the AC/DC Power Supply fulfills IP32 in areas with more than 42 V and IP22 in other areas.
This means that the unit is protected against the intrusion of solid objects (including body parts like fingers), dust, water etc.
When more power is needed than one power supply can give, i.e. 300 W, you can stack up to three power supplies on top of each other and connect them.
When stacking 2 or 3 units the load on each of the units is automatically balanced among the units.
Stacking multiple units
You can mount up to three AC/DC Power Supply units in a vertical (recommended to use the Wall Mounting Tray and cable-relief bracket, heavy duty, order number: Part# 406080A-001) or horizontal position.
When mounted in a vertical position, with the connector panel pointing downwards, the unit fulfills IP32 in areas with more than 42 V and IP22 in other areas.

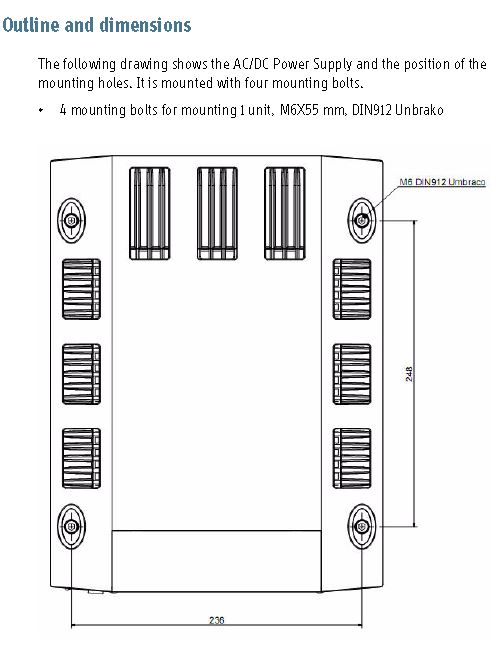

The mounting holes in the AC/DC Power Supply are designed in such a way that units fit nicely on top of each other when being stacked.
IMPORTANT NOTE
To ensure adequate cooling of the AC/DC Power Supplies an unobstructed space of minimum 5 cm must be maintained around all sides of the group of units (except between the units and the bottom side).
