Cobham Thrane IP Cradle only, Wired
Cobham Thrane IP Cradle only, Wired

Cobham Thrane IP Cradle only, Wired

$949.22

TT-01-403674A Thrane IP Cradle only, Wired
This wired cradle connects via a fixed LAN cable to a LAN port with PoE, for example in a BGAN terminal.
The Wired IP Cradle powers the Handset directly from the LAN (PoE) interface.
Compatible with the Wired Thrane IP Handset part# TT-403672A, and all BGAN Terminals, Sailor, Explorer etc

SKU: TT-01-403674A Categories: , , , , , , , , ,

Product Description

TT-01-403674A Thrane IP Cradle only, Wired
WIRED CRADLE – THE BASICS
The wired handset is powered directly from the LAN interface using Power over Ethernet (PoE), so an external power supply is not needed.
The IP Handset connects to the cradle with a coil cord.
The cradle connects with a fixed LAN cable to a LAN port with PoE, for example in a BGAN terminal (Broadband Global Area Network) for satellite communication.

PURCHASE CLARIFICATION NOTE:
The order Part# TT-403670A Thrane IP Handset & Cradle, wired, includes the following main units:
• TT-403672A Thrane IP Handset, wired
• TT-403674A Thrane IP Cradle, wired

Tech Specs

TT-01-403674A Thrane IP Cradle only, Wired
Compass safe distance:
Wireless cradle: 85 cm

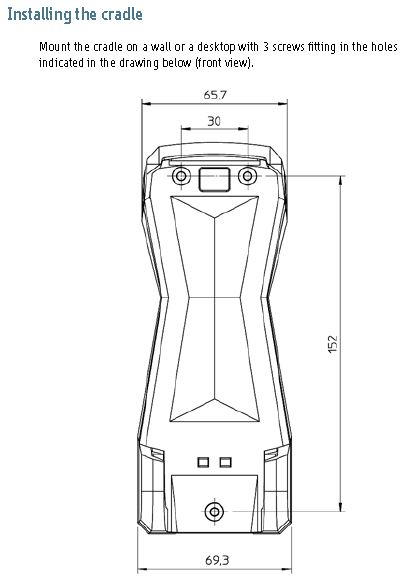

Physical:
Length: 177mm
Width(Cradle Top): Width: 65.7mm, Depth 54.0mm
Width(Cradle Bottom): Width 69.3mm Depth 56.7mm
connectors:
The wired cradle has two internal LAN connectors and an alternative terminal block for the LAN connection:
• One LAN connector connects to the coil cord from the IP Handset.
• The other LAN connector, or alternatively the terminal block, connects to your LAN cable between the cradle and the BGAN terminal.
