Product Description

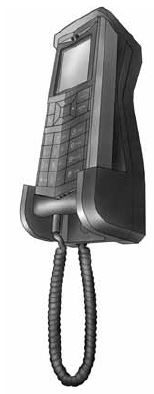

TT-01-403670A Cobham Thrane IP Handset and Cradle, Wired
From the BGAN terminal, the call is transmitted as a normal circuit-switched call.
The TT-403670A Thrane IP Handset & Cradle, wired, includes the following main units:
• TT-403672A Thrane IP Handset, wired
• TT-403674A Thrane IP Cradle, wired
You can make secure calls to all IP phones complying with the ZRTP version used by the IP Handset.
The IP Handset has some BGAN terminal control functions.
If configured as handset with the local number 0501, you can use the handset to start and stop data connections (background or streaming) for all network user groups.
To improve overall system overview the IP Handset displays active, critical alarms from the BGAN terminal to keep you informed about the status of the BGAN terminal.
The handset is designed specifically for use in harsh environments and it is dust proof and splash proof. Excellent sound quality is achieved by including an efficient noise suppression software. On the large 2.2″ color TFT screen, a graphical user interface provides easy access to all functions including contacts and settings.
The user interface also provides direct access to certain features of a connected BGAN terminal.
WIRED HANDSET & CRADLE – THE BASICS
The wired handset is powered directly from the LAN interface using Power over Ethernet (PoE), so an external power supply is not needed.
The IP Handset connects to the cradle with a coil cord.
The cradle connects with a fixed LAN cable to a LAN port with PoE, for example in a BGAN terminal (Broadband Global Area Network) for satellite communication.
Overview
TT-01-403670A
The IP Handset offers the following features:
Plain voice communication over Internet or IP based network
Secure voice communication over Internet or IP based network
Start and stop IP data connections in a connected BGAN terminal
Contacts list with up to 100 entries
Intuitive user interface and menu system
Built-in web interface
High quality color display QVGA with night colors
Rugged but elegant design
Splash proof and dust proof
Connectivity to Broadband Global Area Network (BGAN) terminal
BGAN menu to display BGAN terminal type, GPS position and more
Display of critical alarms of the BGAN terminal
Tech Specs
TT-01-403670A
Type TT-403672A Thrane IP Handset, wired
Dimensions(L x B x H): 152 mm x 55 mm x 26.5 mm
Weight: 190 g ±20 g (without cable)
Display: 2.2″, 240 x 320 pixel TFT color LCD
Operating temperature: -25°C to 45°C
Storage and transport
Temperature: -25°C to 55°C
Humidity: Up to 95% without condensation
Air pressure(transport): 4572 m AMSL
Power over Ethernet (PoE) class 2(Alternative B of IEEE802.3af is not supported.)
Power consumption: Max. 7 Watt
Protection: category IP55, dust proof and splash proof
LAN interface: 10/100 Mbps
Network Protocol: Internet Protocol (IP)
VoIP Protocol: SIP v2 Session Initiation Protocol(RFC3261), SDP (RFC2327)
Voice Codecs: G.711 and G.729 A/B
Physical interfaces: RJ-45 male connector on fixed cable
Not currently used: Headset 2.5 mm jack and Mini-USB 5-pin
Certifications: FCC, CE
Encryption: (VoIP protocol) SRTP (RFC 3711), ZRTP (ID ver. 3),
IP Handset connectors:
The IP Handset has a coil cord with a LAN connector for connecting to the cradle or directly to a LAN (PoE) interface. The handset also has two connectors on the side of the handset:
• one connector for connecting a headset.
• one Mini-USB connector.
IP cradle connectors:
The cradle for the IP handset has two internal LAN connectors and an alternative terminal block for the LAN connection:
• One LAN connector connects to the coil cord from the IP Handset.
• The other LAN connector, or alternatively the terminal block, connects to your LAN cable between the cradle and the BGAN terminal.
Compass safe distance:
Wired handset: 50 cm
Wired cradle: 85 cm
