Product Description
TT-00-406222A-00500 Cobham Thrane SAILOR 6222 VHF DSC Class A
SAILOR 6222 VHF provides flexibility through straightforward installation, either as part of a GMDSS console or on its own.
As a result of improved, high performance and innovative, easy-to-use functionality the radio offers important operational enhancements.
It introduces several new hardware and software improvements, including the improved SAILOR Replay functionality.
The highly advanced 3.2” QVA display ensures the information can be read regardless of the light conditions on the bridge – day or night.
The text can be displayed as white on black background, and as black on white background, to provide the optimal reading condition in daylight. Red backlight protects the night vision of the user.
The SAILOR 6222 VHF is the first ever DSC Class A to be rated waterproof to IPx6 and IPx8, making it possible to install on open workboats or outside deck areas.
Overview
TT-00-406222A-00500
Flexible Solution A broad portfolio of high quality accessories is available for the SAILOR 6222 VHF, which improve its installation flexibility and operational scope.
Handset, hand microphones, SAILOR 6204 Control Speaker Microphone for bridge wing operation, as well as Alarm Panels and external loudspeakers, enable multiple users in different locations to utilize the high performance GMDSS Communication system.
Features
Unique SAILOR Replay (240 sec.) of incoming communication
High quality display – perfect night and day vision
Powerful 6W loudspeaker
Intuitive and easy to operate menu structure
Large tactile buttons and wheelknobs for easy operation
The popular SAILOR handset
ThraneLINK
Tech Specs
TT-00-406222A-00500
Power Supply: 12VDC Nominal (10,8– 15,6VDC). Reverse polarity protected.
Power Fuse: Possible to change outside equipment.
Frequency Range: TX: 156.000 – 157.425, RX: 156.000 – 163.425MHz
Channel Spacing: 12,5kHz and 25kHz incl. all international maritime channels
Channels
– International channels
– US channels (incl. WX)
– Canadian channels
– BI channels, incl ATIS and ATIS Killer
– Private Channels(P/F/L): 100
– Option: Extended Frequency range in private channels
Modulation
– 25 kHz: 16K0G3E, 16KOG2B (DSC)
– 12.5 kHz: 10K0G3E
Power
– Current consumption Max. 7 A
– Current consumption at 12 VDC (no accessories connected): RX: 0.5 A, TX: 5 A
– Current consumption at 12 VDC (all accessories connected): RX: 0.7 A, TX: 7 A
– Transmit Power Hi / Lo: 25W and <1W Power
Built in loudspeaker: 6W
Interfaces
- SAILOR 6204 control speaker microphones 4
- SAILOR 6201/6202/6203 Handset/Hand Microphones 3
- VDR
- Printer interface
- External loudspeaker 6W / 8Ohm
Receiver Sensitivity: < -119dBm Typically @ 20dB SINAD CCITT Weighted
Antenna
- 50 Ohm antenna,
- 50 Ohm female SO239 for PL259 plug
- 2-antenna operation for VHF and DSC communication
Ambient Temperature: Operational: -25degC to 55degC
Storage: -40degC to 80degC
Water ingress: IPx8 and IPx6 all over (Note: When unit is in a flush mount installation a sealing gasket will be provided.)

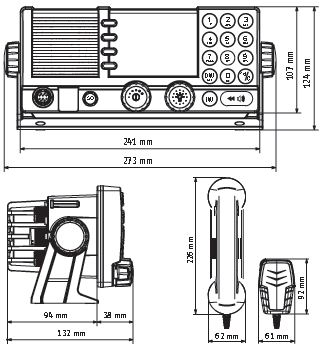

Dimensions
- Height: Outer dimension 107 mm, hole height for flush mount 89 mm
- Width: Outer dimension 241 mm, hole width for flush mount 227 mm
- Depth: Outer dimension from front of knobs 132 mm, depth for flush mount 94 mm
Weight: < 1.5kg (3.3lbs)
Shipping Weight: 3.8 kg (8.4 lbs) approximately, including SAILOR 6201 Handset with cradle and wall mount cradle, SAILOR 6204 Control Speaker Microphone and Installation and user manual in box.
For updates: go to www.cobham.com or www.thrane.com for full specifications
