Product Description
TT-00-406217A-00500-FULL Cobham Thrane SAILOR 6217 VHF DSC Class D AIS
Take decades of experience as a professional maritime VHF pioneer and combine with the world renowned SAILOR build quality and DSC. The result?
The feature rich, rugged and waterproof SAILOR 6217 VHF DSC Class D AIS Receiver.
The professionals’ choice
Waterproof to IPx8 and IPx6, you will experience the SAILOR resilience and ability to perform in any conditions with the SAILOR 6217 VHF DSC Class D AIS Receiver, at a highly competitive price point.
Premium, rugged quality for less, regardless of your vessel type: Work boats, fishing vessels, super yachts and ships can all enjoy reliable DSC communications out on deck or at the helm.
Dual parallel channel operation enhances safety
Building on the SAILOR 6215 VHF DSC Class D, the SAILOR 6217 VHF DSC Class D AIS Receiver integrates a two channel parallel AIS Receiver, which enables it to perform a constant watch of both AIS channels, rather than switching between them.
This provides greater safety through better situational awareness, because you get a seamlessly updated view of AIS equipped vessels in the surrounding area at all times.
Feature rich
The SAILOR 6217 VHF DSC Class D AIS Receiver features excellent audio from the built in 6kw speaker in addition to Dual Watch, Tri Watch and Scanning, loudhailer with talk-back and foghorn functionality.
Whether hailing your team or communicating with passing vessels or SAR assets, make your job easier and safer through better internal and external communication.
Simple operation
A large display with red backlight to protect your night vision makes navigating the intuitive menus using robust buttons and wheelknobs a simple operation.
Reduce stress for enhanced safety.
Concentrate on your job with easy access to the advanced SAILOR 6217 VHF DSC Class D AIS Receiver functionality and high performance communication.
Overview
TT-00-406217A-00500-FULL
The robust, solid qualities of the SAILOR 6217 is apparent immediately.

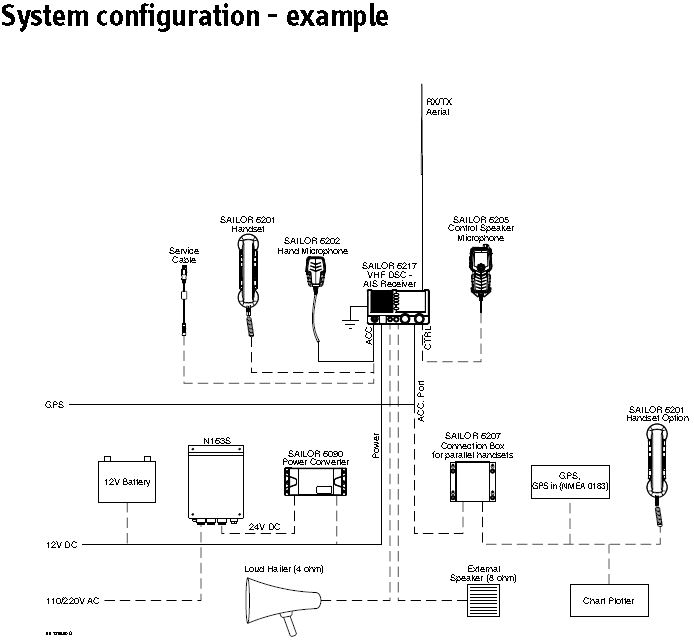

Integration with existing systems
The SAILOR 6217 VHF DSC Class D AIS Receiver can be easily connected to any NMEA 0183 chart plotter so all signals can be viewed and plotted on a vessel’s existing equipment.
With a clear picture of your surrounding area and the ability to communicate in even the most extreme conditions, you can put more time and energy into getting the job done.
Professional VHF radio
Designed with reliability and ease-of-use in mind, the SAILOR 6217 VHF DSC Class D AIS Receiver belongs at the helm of any vessel crewed by professionals.
Features include:
Full waterproof to IPx8
SAILOR Replay Function
Easy to read display with red backlight and dimming
High quality, powerful loudspeaker Interfaces for AIS output and optional loud hailer
Dual-watch/Tri-watch and scanning
Flexibility for all vessel types
The high quality SAILOR 6202 Hand Microphone is delivered as standard with the SAILOR 6217 VHF DSC Class D AIS Receiver, however, you can connect up to two Hand Microphones or Handsets to the system.
The ergonomically designed SAILOR 6202 Hand Microphone and SAILOR 6203 Handset WP have built in PTT function, microphone and loudspeaker, and are both waterproof to IPx6.
Tech Specs
TT-00-406217A-00500-FULL
Power Supply: 12VDC Nominal (10,8– 15,6VDC). Reverse polarity protected.
Power Fuse: Possible to change outside equipment.
Frequency Range: TX: 156.000 – 161.450, RX: 156.000 – 163.425
Channel Spacing: 12,5kHz and 25kHz incl. all international maritime channels
Number of P Channels: Minimum 60 programmable channels incl. Leisure and Fishery Channels
Transmit Power Hi / Lo: 25W and <1W LF Power
Current Consumption: Max 7A
Built in loudspeaker: 6W
External loudspeaker: 6W / 8Ohm
Loudhailer: 30W / 4Ohm (Only achievable when unit is not transmitting)
Receiver Sensitivity: < -119dBm Typically @ 20dB SINAD CCITT Weighted
Antenna Connector UHF Plug PL259 - 50 ohm (Only one supported antenna also for the DSC versions)
Ambient Temperature: Operational: -15degC to 55degC
Storage: -40degC to 80degC
Water ingress: IPx8 and IPx6 all over (Note: When unit is in a flush mount installation a sealing gasket will be provided.)
Height: Outer dimension 106 mm, hole height for flush mount 89 mm
Width: Outer dimension 190 mm, hole width for flush mount 177 mm
Depth: Outer dimension from front of wheel knobs 132 mm, depth for flush mount 94 mm
Weight: < 1.2kg
Weight(with 6202 Hand Microphone): < 1.5kg
AIS receiver < -112 dBm typically. Dual simultaneous reception and demodulation (in compliance with AIS Class B reception only).
NMEA data rates and formats
Item: 62162-1, Value: 4800,8,n,1 (in/out)
Item: 62162-2, Value: 38400,8,n,1 (out only)
Item: Sentence format, Value: !AIVDM
For updates: go to www.cobham.com or www.thrane.com for full specifications
