Product Description
TT-00-406215A-00500 Cobham Thrane SAILOR 6215 VHF DSC Class D
With competitive value, introduced to ensure availability to all professional vessels, the new generation SAILOR 6210 VHF and SAILOR 6215 VHF DSC Class D still retain the same premium, rugged feel of previous generations, but with improvements across the board.
Designed with ease-of-use in mind, the SAILOR 6210 VHF and SAILOR 6215 VHF belong at the helm of any vessel crewed by professionals.
Includes:
– Transceiver Unit, DSC Class D
– SAILOR 6202 Hand Microphone
– U-bracket
– Flush mounting kit
– Operators manual
– Sunscreen.
In addition this Full System pack includes the following Sub Components:
-SAILOR N163S Power supply, 110/220V AC to 24V DC, 7A, black
-SAILOR 6090 Power Converter, 24/12V DC, black
-Marine VHF Antenna
-Antenna Mast Bracket 1.25″ – 11TPI incl Mounting
-Coaxplug PL259 for RG 214/u (x2)
-Coax cable RG 214/u 2 x screen, antenna cable – 40metersx2 (80xmeters)
Features Include:
• Full waterproof to IPx8 (submersible) and IPx6 (spray) all over
• Large easy-to-read display with red backlight and dimming
• High quality, powerful 8W loudspeaker
• Up to 2 additional hand microphones/handsets or control speaker microphones
• Detachable hand microphones – front and rear
• Replay function
• DW, Tri-watch and scanning
• Loudhailer (30W) with talk-back and foghorn functionality.
Overview
TT-00-406215A-00500-FULL
The robust, solid qualities of the SAILOR 6200 VHF series are apparent immediately.
A large display with red backlight protects the user’s night vision and makes it easy to read the intuitive menu.
The tactile feel of the buttons and wheelknobs makes the VHFs very easier to operate.
The powerful 6W built in loudspeaker ensures good sound quality, even in noisy environments.
Play it Again
The SAILOR 6200 VHF series feature the popular SAILOR Replay function, which constantly records the latest incoming messages.
This function allows the user to clarify received information and ensures that it is not lost or ignored, if the user was occupied in other operations.
The SAILOR 6200 VHF series feature the popular SAILOR Replay function, which constantly records the latest incoming messages.
This function allows the user to clarify received information and ensures that it is not lost or ignored, if the user was occupied in other operations.
Flexible Installation
The SAILOR 6210 VHF and SAILOR 6215 VHF DSC Class D offer a very flexible installation.
The waterproof design, covering the entire radio including hand microphone allows for open installations.

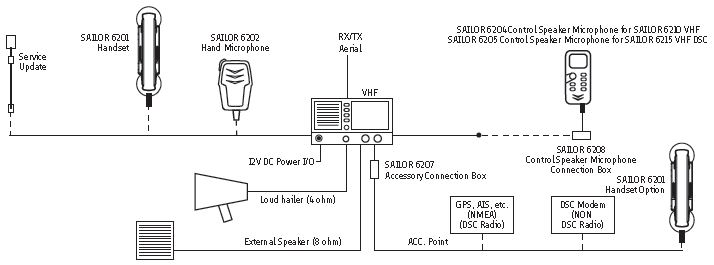

The SAILOR 6200 VHFs can be operated by two extra handsets, hand microphones or one control speaker microphone.
All are detachable and can be connected on both the front and the rear of the VHF.
The VHF’s also allow for interfaces to external loudspeaker, loudhailer with talkback and foghorn and additional equipment that can enable even more features.
With the SAILOR 6210 VHF and SAILOR 6215 VHF DSC Class D the new generation of SAILOR VHF is here.
They are built on decades of history as the professional user’s choice.
Designed with the user in mind, keeping focus on high value, performance, ease-of-use, connectivity functionality and build quality the SAILOR 6200 VHF series continues the long tradition of SAILOR VHF.
Tech Specs
TT-00-406210A-00500-FULL
Power Supply: 12VDC Nominal (10,8– 15,6VDC). Reverse polarity protected.
Power Fuse: Possible to change outside equipment.
Frequency Range: TX: 156.000 – 161.450, RX: 156.000 – 163.425
Channel Spacing: 12,5kHz and 25kHz incl. all international maritime channels
Number of P Channels: Minimum 60 programmable channels incl. Leisure and Fishery Channels
Transmit Power Hi / Lo: 25W and <1W LF Power
Built in loudspeaker: 8W
External loudspeaker: 6W
Loudhailer: 30W (Only achievable when unit is not transmitting)
Receiver Sensitivity: < -119dBm Typically @ 20dB SINAD CCITT Weighted
Antenna Connector UHF Plug PL259 - 50 ohm (Only one supported antenna also for the DSC versions)
Ambient Temperature: Operational: -15degC to 55degC
Storage: -40degC to 80degC
Water ingress: IPx8 and IPx6 all over (Note: When unit is in a flush mount installation a sealing gasket will be provided.)
Height: 85mm Inner dimensions (Hole Height for flushmount),
Height: 105mm Outer dimensions
Width 175mm Inner dimensions (Hole width for flushmount), 190mm Outer dimensions
Depth max. (from front of wheel-knobs): 130mm
Depth when flush-mounted: 90mm
Model / Weight 626210A/15A/16A: < 1.2kg
Model / Weight 406210A/15A/16A: < 1.5kg
For updates: go to www.cobham.com or www.thrane.com for full specifications
