Product Description
TT-00-403722A-00700 Thrane Explorer 727 BGAN System, with Desert Sand Antenna
Today’s requirements for dynamic rapid response and deployable communications have never been more critical. To meet this demand Thrane & Thrane has developed the EXPLORER 727 – thus turning your vehicle into a mobile communications hub.
This means that you will have access to phone networks and the Internet while you are on the move anytime and anywhere in the world.
The EXPLORER 727 antenna on the roof is constantly tracking satellite positions, which provides you with a high speed broadband connection at all times.

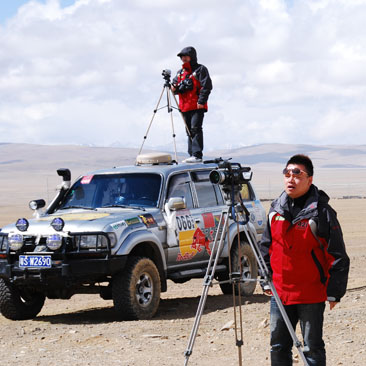

Whether you’re engaged in military actions, live broadcast, telemedicine, video conferencing or live interviews, you need to rely on rapid response and deployable communications.
Explorer 727 – order Guide
403722A-20000 EXPLORER 727 System, white antenna
403722A-00700 EXPLORER 727 System,desert sand antenna
403722A-20010 EXPLORER 727 System,19” rack version, white antenna
403722A-00710 EXPLORER 727 System,19” rack version, desert sand antenna
Overview
TT-00-3722A-00700 (Antenna colour: Desert Sand)
Features
Phone book
Message indication
Restricted dialing
Traffic logging
Tech Specs
TT-00-3722A-00700 (Antenna colour: Desert Sand)
Physical
Dimensions and Weight
Weight: Transceiver – 2.4 kg/5.5 lbs, Antenna – 6 kg/13.2 lbs
Size: Transceiver: H/W/D 42.5 x 247 x 270mm(1.67 x 9.72 x 10.63in), Antenna: H/Ø 160 x Ø476mm(6.3 x Ø18.76in)
Frequency Band
RX: 1525.0 – 1559.0 MHz
TX: 1626.5 – 1660.5 MHz
Ch. spacing: 1.25 kHz – RX.
Recommended Antenna Cable
Cable loss max: At 1525.0 – 1660.5 MHz 20 dB, (At 36 – 54 MHz 4 dB)
Maximum DC loop resistance 0.6 ohm
Max. cable length: RG-223_U-01: 14 m/46 ft, RG-214_U-01: 50m/164ft, S-07262-BD: 92m/302 ft
Global Services
Voice: Standard 4 kbps, Premium 3.1 kHz audio (*1)
Fax: ISDN, 3.1 kHz audio (*1), 64 kbps
Data: ISDN UDI/RDI (*1), 64/56 kbps, ISDN 3.1 kHz audio (*1), 64 kbps
Standard data up to 432 kbps
Streaming data (QoS) Up to 256 kbps
Text messaging: SMS up to 160 char.
Antenna Connectors
EXPLORER Terminal TNC-socket, female
EXPLORER Antenna, TNC-socket, female
Interfaces
4 x 10/100 Mbps Ethernet LAN user ports w/PoE(Max power at 12V, 30W), (Max power at 24V, 60W)
1 x ISDN (Euro – RJ-45)
2 x 2-wire (Analog – RJ-11)
5 x I/O connector with General Purpose I/Os: Pin 1: Ringer, Pin 2: Warning, Pin 3: Mute, Pin 4: Radio Silence, Pin 5: Ignition Control
1 x SIM card slot.
1 x Heavy duty power input plug (10-32 VDC), w/ remote on/off and locking mechanism
1 x Factory default reset button
1 x Power on/off switch
Status LEDs for: Power, Terminal, Antenna, Messages, LAN Activity, Link, PoE
Power Consumption
Maximum incl. antenna & PoE @ 10-32 V: 150 W
Environmental Conditions
Ambient temperature(Operational): -25 to 55°C (-13 to 131°F)
Survival temperature(Power on, non-functional): -40 to 80°C (-40 to 176°F)
Storage temperature: -40 to 85°C (-40 to 185°F)
Operating humidity: 95% non-condensing (at 40°C/104°F)
EXPLORER Terminal IP Rating: IP-31
EXPLORER Antenna IP Rating: IP-56
Approvals
Inmarsat Land Vehicular Type Approval
CE mark, GMPCS
