$525.00
STS400-G02*
*This pack comes with a Wall A/C power adapter for UK use

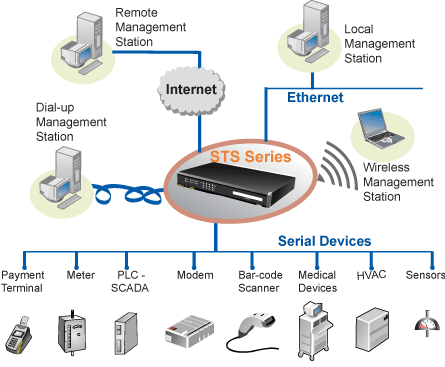

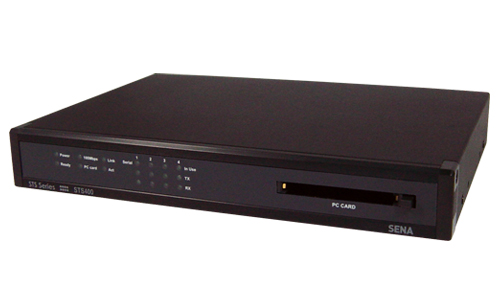

STS400 Series II, is a 4-port Serial Wireless Terminal Server product that connects RS-232 serial devices to the industry standard 10/100Base-T Ethernet network.
The STS400 is a 4-port terminal server model in STS Series product line. The STS Series is a serial terminal server product line that connects RS-232 serial devices to the industry standard 10/100Base-T Ethernet network.
These terminal servers incorporate advanced features such as such as flexible operation mode, TCP/UDP multicasting, telnet COM port control protocol support (RFC2217 compliant), SSL encryption, PCMCIA support and port event handling.
Connects legacy serial devices to 10/100Base-T Ethernet network.
Supports RS232 based serial devices, up to 230Kbps speed.
Supports PC cards such as ATA memory, modem and wired/wireless LAN card.
Flexible TCP/UDP host mode support: Multiple host connection/data transfer.
Powerful security support, SSL/TLS and data encryption.
Easy-To-Use customization support: User space, Library and Scripts (network/port access).
System logging & port logging.
Dynamic DNS and PPPoE protocol for DSL connection to broadband Internet.
Configuration via Web, Telnet/SSH or serial port.
Management software for configuration and administration included.
Surge protector included.
Supports RFC 2217, Telnet COM Port Control Protocol.
Go to the Reference Table Below…………….
| STS400 | STS800 | STS1600 | CPU | MPC 855T 32-bit RISC CPU, 50Mhz | DRAM | 64 MB | Flash | 8 MB ( 1 MB of user programmable space ) | Serial Interface | 4-port RJ45 connector | 8-port RJ45 connector | 16-port RJ45 connector | Serial speeds 75bps to 230Kbps | Flow Control: Hardware, Software | Signals:
RS232: Rx, Tx, RTS, CTS, DTR, DSR, GND | Network Interface | 10/100Base Ethernet with RJ45 Ethernet connector | Supports static and dynamic IP address | Network Protocols | ARP, IP/ICMP, DNS, Dynamic DNS SMTP with/without Authentication, pop-before SMTP, DHCP client, NTP, PPPoE TCP, UDP, SSL v2 & v3, TLS v1, RFC-2217 SSH v1 & v2,Telnet HTTP, HTTPS, SNMP v1 & v2 | Serial Port Access protocol : Telnet, TCP, UDP, SSL v2 & v3, TLS v1, RFC-2217 | Embedded Linux |
File System :
CRAMFS, JFFS2, NFS, EXT2, VFAT/FAT Utilities : Bash : OS shell command Utilities only for Super Series : ss.apply, ss.filter, ss.portmenu, ss.channel, ss.logger, ss.save, ss.configuration_manager, ss.port, ss.tcp, ss.modemmenu, ss.server_lock, ss.connect, ss.nfs_mount, ss.edit, ss.port_factory_default, port[number]_reset Daemon : snmpd : snmpd agent daemon Tool Chain : Gcc ( V2.95.3 ) : C/C PC Cross Compiler | PCMCIA |
ATA flash memory card 802.11b Wireless LAN card 10/100 Base-TX LAN Card Modem card | Security |
User ID & Password | HTTPS | Secure terminal interface: SSH | Data Encryption: SSLv2/v3, TLS v1, 3DES and RC4 | IP address filtering | SCP | Modem emulation |
Full support for AT commands | Management |
Web | System log and statistics:
System logging to SYSLOG/NFS server or CF card | Firmware:
Stored in Flash memory and Downloadable via serial console or telnet or web | Diagnostic LED |
Power | Power | 5VDC1.5A @ 5V | 110~250 VAC, 50/60Hz 43W | Environmental | Operating temperature: 0’C to 50’C | Storage temperature: -20’C to 66’C | Humidity: 90% Non-condensing | Physical Properties | 245x 153x 30 (mm) 9.6 x 6 x 1.2 (in.) | 432 x 193 x 44.5 (mm) 17 x 7.6 x 1.75 ( in.) | Weight: 1.5kg | Weight: 2.8kg | MTBF | 17.08 Years | 8.93 Years | Approvals | FCC Part 15 Subpart B, Class A EN61000-3-2, EN61000-3-3 EN60950-1 EN55022 EN55024 MIC | Warranty | 5-year Limited Warranty |
