Iridium STARPAK Cable, 6.0m(236in) LMR240UF, TNC-Male to SMA-Male, passive
$119.00
STARPAK-SMAM-6.0M-LMR240UF-TNCM UltraFlex Cable with SMA-Male and TNC Male Connectors
Enables you to fast connect your Satellite Telephone device to an external antenna.
Convenient and Small SMA connector for easy installation thru cable tracks and fire walls.
User friendly flexible, soft, LMR240 UltraFlex cable – minimize stress to your connectors and device.
Quality, Made in USA, low loss cable from Times Microwave Systems.
For all Satellite devices featuring a TNC-Female connector and antennas featuring a SMA-F connector.
NOTE: Requires Optional TNC-M to SMA-F Adapter for connection to Antennas featuring a TNC-Female connector.
STARPAK-SMAM-6.0M-LMR240UF-TNCM UltraFlex Cable
6.0m(176in) Times Microwave Systems Cable

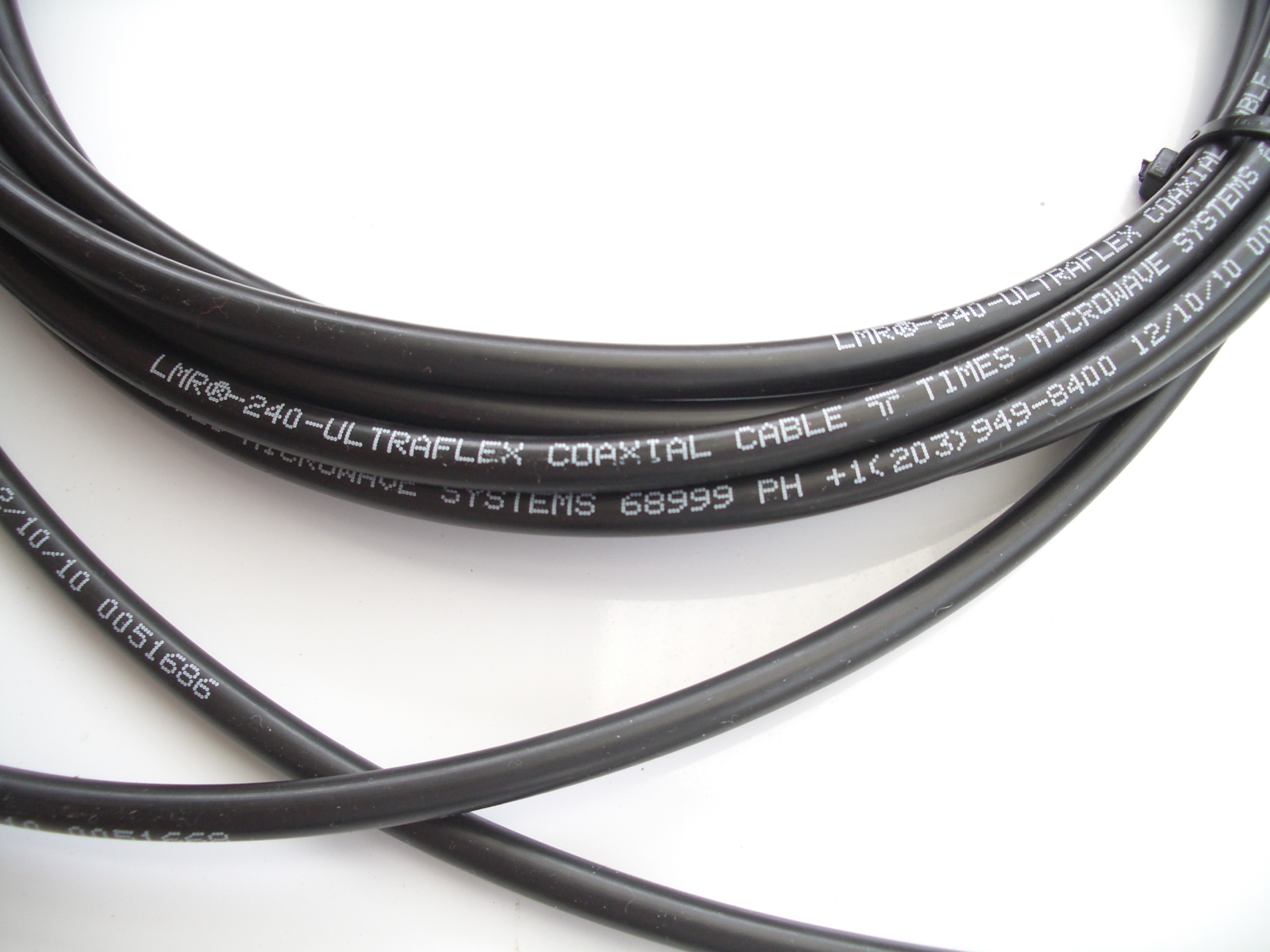

Cable basics: SMA-Male to LMR240UF Ultraflex Cable to TNC-Male
Weight: 330g(11.6oz)
Made in USA, Times Microwave Systems cable is the choice of Industry and premium quality.
Application and Benefits
Easy, user friendly Fast Connect to your Satellite Phone and Antenna
convenient and compact short length for fast deployment.
Low Loss at 2.44dB, well within Satellite Telephone and GPS (2.9dB) cable loss specification.
High Performance, Low Loss and fully tested to 2.9dB specifications.
This Cable Kit for all Iridium, Inmarsat, Thuraya, Globalstar, Beam, Aero and other 3rd party suppliers.
For all Satellite devices featuring a TNC-Female connector and antennas featuring a SMA-F connector.
NOTE: Requires Optional TNC-M to SMA-F Adapter for connection to Antennas featuring a TNC-Female connector.
Overview
STARPAK-SMAM-6.0M-LMR240UF-TNCM Features and Overview
Cable basics: SMA-Male > LMR240 UltraFlex Cable > TNC-Male
Made in USA, Times Microwave Systems cable is the choice of Industry and premium quality.
Application and Benefits
Low Loss at 2.44dB, well within Satellite Telephone and GPS (2.9dB) cable loss specification.
For all Satellite devices featuring a TNC-Female connector and antennas featuring a SMA-F connector.
High Performance, Low Loss and fully tested to 2.9dB specifications.
NOTE: Requires Optional TNC-M to SMA-F Adapter for connection to Antennas featuring a TNC-Female connector.
Tech Specs
STARPAK-SMAM-6.0M-LMR240UF-TNCM Technical Specifications
Terminated Cable
Cable Length: 6.0m(176in)
Cable basics: SMA-Male > LMR240UF Ultraflex Cable > TNC-Male
Weight: 330g(11.6oz)
Made in USA, Times Microwave Systems cable is the choice of Industry and premium quality.
Total Loss: 2.44dB
Assembly: AMC
Origin: USA
TNC-Male Connector
Manufacturer: Amphenol
Description: Connector, RF coaxial, TNC straight crimp plug, for rg8x, LMR240 UltraFlex cable, 50 ohm
SMA-Male Connector
Manufacturer: Amphenol
Connector, RF coaxial, SMA straight crimp plug, for rg8x, LMR240 UltraFlex cable, 50 ohm
Cable Specs
•Medium Size Coaxial Connectors with Thread Coupling
•50 Ohm Impedance for Applications Up to 11 GHz
•75 Ohm Impedance for Applications Up to 1 GHz with a Typical SWR of 1.15:1 Achieved
