STARPAK-S73-IR-DM-GPS-1
Design and Mounting profile: Helix, Flat Bracket, Pipe Mount or Bulkhead

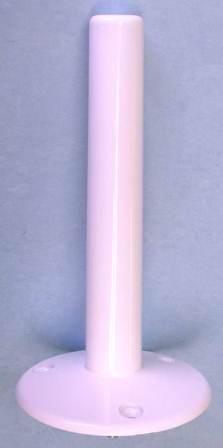

This Helix Hi-Gain Antenna, is designed to provide highest performance of all antennas and significantly exceeds the antenna performance that is included with the handset.
Allows the handset or IRIDIUM and GPS Terminal to be used inside any Vehicle, Vessel or Fixed Building with Mast, or raised mounting above obstructions
Speed Rated to 217km(135mph) and Vibration at 30 G’s: Will not blow off the roof in High Winds, Vibration, or at Vehicle High Speed.
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Height: 166.37mm(6.550in)
Diameter: 66mm(2.6in)
Weight: 232g(8.2oz)
Compatible also with all Iridium, and GPS Satellite Products

Tech Specs

Technical Specifications STARPAK-S73-IR-DM-GPS-1
Design and Mounting profile: Helix, Flat Bracket, Pipe Mount or Bulkhead
IRIDIUM ELECTRICAL
FREQUENCY: 1610.0 to 1626MHz
RADIATION PATTERN: Hemispherical
POLARIZATION: RHCP
VSWR:< 1.5:1 GAIN (dBic) : Free Space @ 90deg (Zenith Top): 2.0 @10deg Elevation: -2.5 @20deg Elevation: -0.6 @30deg Elevation: 0.7 @45deg Elevation: 1.6 @70deg Elevation: 1.7 AXIAL RATIO at Zenith: 1-2dB 3.0db BEAM WIDTH: 190deg POWER HANDLING: >30Watt
DC GROUNDING: YES(Lightning Protection)
FILTER REJECTION…..
824-894MHz : > 70dB
1610-1626.5MHz : > 67dB
3220-3253MHz : > 29dB
4830-4879.5MHz : > 54dB
L1 GPS ELECTRICAL (L2 GPS Optional)
FREQUENCY: 1575.42 ( /- 12MHz)
RADIATION PATTERN: Hemispherical
POLARIZATION: RHCP
VSWR: < 1.5:1 GAIN (dBic) : Free Space @ 90deg (Zenith Top): 2.3 @10deg Elevation: -2.5 @20deg Elevation: -0.80 @30deg Elevation: 0.70 @45deg Elevation: 1.80 @70deg Elevation: 2.20 AXIAL RATIO at Zenith: 1-2dB 3.0db BEAM WIDTH: 90deg POWER HANDLING: 1Watt DC GROUNDING: YES(Lightning Protection) REJECTION@ -50/ 50MHz : -45/-70dB -100/ 100MHz : -65dB DIMENSIONS
Height: 166.37mm(6.550in)
Diameter: 66mm(2.6in)
Weight: 232g(8.2oz)

PROPERTIES
Material: 6061-T6 Aluminum Alloy Base, Composite Radome, Impact, Abrasion, UV, Solvent, and Skydrol, Corrosion Resistance and Fire Retardant
Finish: Skydrol Resistant, Polyurethane Resistant Enamel, Base Iridite Per MIL SPEC – C144

COLOURS
Gloss White is supplied by default
Email your alternate using colour reference, as follows:
Gloss White #17925(per USA FED-STD 595B PAINT) : Part #STARPAK-S73-IR-DM-GPS-1 (supplied by default)
Lusterless Grey #36320(per USA FED-STD 595B PAINT) : Part #STARPAK-S73-IR-DM-GPS-2
Olive Drab Green #34094(per USA FED-STD 595B PAINT) : Part #STARPAK-S73-IR-DM-GPS-3
Lusterless Black #37038(per USA FED-STD 595B PAINT) : Part #STARPAK-S73-IR-DM-GPS-4
Desert Tan #FB23446 / 33446(FED STD 595 PAINT): Part #STARPAK-S73-IR-DM-GPS-5
Teflon Coated Grey(for Marines/Buoy/Extreme applications): Part #STARPAK-S73-IR-DM-GPS-6
CONNECTORS

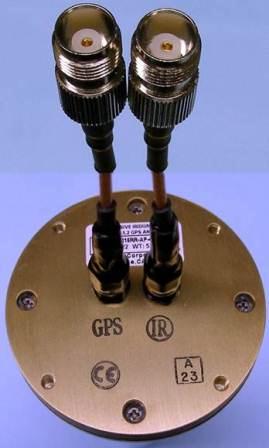

Both Iridium and GPS base exit connectors are SMA-Female (supplied by default)
Email your alternate using Connector reference, as follows:
T: TNC, TB: TNC Bulkhead,
S: SMA, SB: SMBR,
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N Bulkhead
SMC or SSMC or SSMB, SSMA

ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 70,000ft
Speed Rating: 217km(135mph)
Vibration: >30 G’s
Leakage: Hermetically Sealed
DESIGNED TO – NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium Certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810,and SAEJ1455
