Product Description

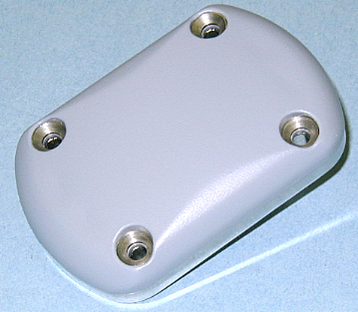

STARPAK-S4-IR-LV-A1 Antenna, IRIDIUM Mini ARINC
Mounting profile: Bulkhead.
This antenna is designed for maximum low profile performance.
Enables the Satellite Telephone to be used inside any Building, Marine, or Low Velocity Aircraft application.
BASICS
Mounting: Flat fixed Mount, with gasket and 4x 10-32 Stainless Steel Mounting Screws Supplied
Antenna Size: 55.88mm(2.20in) Wide x 86.36mm(3.40in) Long x 14.94mm(0.588in) High
Antenna Weight: 133g(4.7oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A1
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Vibration: > 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
same as STARPAK-S4-TSO-IR-A1 FAA Approved TSO Antenna, IRIDIUM AERO Mini ARINC, but without Certification Documents
Overview
STARPAK-S4-IR-LV-A1 Antenna, IRIDIUM Mini ARINC
Mounting profile: Bulkhead.
This antenna is designed for maximum low profile performance.
Enables the Satellite Telephone to be used inside any Building, Marine, or Low Velocity Aircraft application.
BASICS
Manufactured in USA, Iridium certified product
Colours: Gloss White supplied by default, also available in MIL-SPEC Lusterless Black and Grey, Olive Drab Green, and Desert Tan
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
same as STARPAK-S4-TSO-IR-A1 FAA Approved TSO Antenna, IRIDIUM AERO Mini ARINC, but without Certification Documents
Tech Specs
STARPAK-S4-IR-LV-A1 Antenna, IRIDIUM Mini ARINC
Mounting profile: Bulkhead.
BASICS
Mounting: Flat fixed Mount, with gasket and 4x 10-32 Stainless Steel Mounting Screws Supplied
Antenna Size: 55.88mm(2.20in) Wide x 86.36mm(3.40in) Long x 14.94mm(0.588in) High
Antenna Weight: 133g(4.7oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A1
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-S4-IR-LV-A5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Vibration: > 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
same as STARPAK-S4-TSO-IR-A1 FAA Approved TSO Antenna, IRIDIUM AERO Mini ARINC, but without Certification Documents
