Product Description

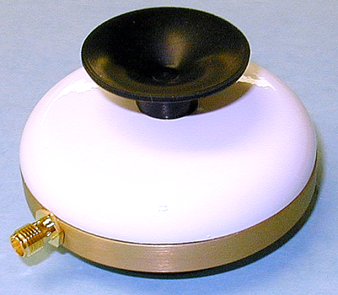

STARPAK-S2I-IR-A1 Interior Antenna, IRIDIUM Aero and Marine Interior Mini Suction Cup Patch
Mounting profile: Internal Clear Screen.
This antenna is designed for maximum Iridium Satellite performance.
Enables the Iridium Satellite Telephone to be used inside any Building, Vehicle, Marine, or Aircraft.
BASICS
Mounting: Suction Cap
Connector: SMA-Female
Antenna Size: 66.04mm(2.60in) Dia x 17.53mm(0.690in) High
Antenna Weight: 146g(5.15oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-S2IR16RR-A1
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-S2IR16RR-A2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-S2IR16RR-A3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-S2IR16RR-A4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-S2IR16RR-A5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
Overview
STARPAK-S2I-IR-A1
Mounting profile: Low Profile, Suction Cup.
This Iridium Satellite antenna is designed for maximum Internal low profile performance.
Simply push suction cap against any screen surface facing upwards.
Fast and easy deployment inside any Building, Vehicle, Marine, or Aircraft.
BASICS
Manufactured in USA
Iridium certified product
Colours: Gloss White supplied by default, also available in MIL-SPEC Lusterless Black and Grey, Olive Drab Green, and Desert Tan
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
Tech Specs
STARPAK-S2I-IR-A1 Antenna, IRIDIUM Portable Aero and Marine Mini Suction Patch
Mounting profile: Suction Cap, Internal Clear Screen upwards toward sky.
BASICS
Connector: Side Exit SMA-Female
Mounting: Suction Cup
Antenna Size: 66.04mm(2.60in) Dia x 17.53mm(0.690in) High
Antenna Weight: 146g(5.15oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-S2I-IR-A1(Supplied by Default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-S2I-IR-A2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-S2I-IR-A3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-S2I-IR-A4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-S2I-IR-A5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
