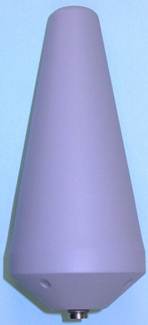

STARPAK-BINR-IR-TPM-1 Ruggedized Helix Antenna, IRIDIUM, with Threaded Pipe Mount for Marine and Harsh Environments
Mounting Profile: TPM(Threaded Pipe mount)
Includes Mounting Kit with custom U Bolt and 300mm(1.0ft) UV Pipe
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 226g(8oz)
Compatible also with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom Global and other 3rd party suppliers
Overview
STARPAK-BINR-IR-TPM-1 Antenna, IRIDIUM, Helix High Gain
Includes Mountink Kit with custom U Bolt and 300mm(1.0ft) UV Pipe
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 226g(8oz)
Compatible also with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom Global and other 3rd party suppliers
Tech Specs
STARPAK-BINR-IR-TPM-1 Antenna, IRIDIUM, Helix High Gain
Includes Mounting Kit with custom U Bolt and 300mm(1.0ft) UV Pipe
ELECTRICAL
Bands: Iridium
FULL SPECS AVAILABLE UPON REQUEST incl. Multi Frequency, Beam Width, and Elevation Gain
Axial Ratio: 1(db) to 3(db)
Radiation Pattern: Hemispherical
Polarization: RHCP
VSWR: <2.0:1
DC Grounding: YES(Lightning Protection)
LNA OPTION(for GNSS or GNSS/Rx only versions)
LNA Gain: 33dB
LNA Noise figure: 3.0dB
LNA P1dB out: 13dBm
LNA DC Power: (2.5 to 24)V / <50mA
Power Handling for Passive: 10W or LNA ACTIVE: 1 Watt CW
CONNECTOR
Base Exit TNC-female by default
Email your alternate using Connector reference, as follows:
T: TNC, TB: TNC Bulkhead,
S: SMA, SB: SMBR,
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N Bulkhead
SMC or SSMC or SSMB, SSMA
DIMENSIONS
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 226g(8oz)
PROPERTIES
Material: 6061-T6 Aluminum Alloy Base, Ruggedized Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol, Corrosion Resistance and Fire Retardant
Finish: Hermetically Sealed (Teflon Coated – Part#STARPAK-BINR-TPM-6 ONLY )
COLOURS
Gloss White is supplied by default
Email your alternate using colour reference, as follows:
Teflon Coated Grey(for Marines/Buoy/Extreme applications): Part #STARPAK-BINR-IR-TPM-6
Gloss White #17925(per USA FED-STD 595B PAINT) : Part #STARPAK-BINR-IR-TPM-1
Lusterless Grey #36320(per USA FED-STD 595B PAINT) : Part #STARPAK-BINR-IR-TPM-2
Olive Drab Green #34094(per USA FED-STD 595B PAINT) : Part #STARPAK-BINR-IR-TPM-3
Lusterless Black #37038(per USA FED-STD 595B PAINT) : Part #STARPAK-BINR-IR-TPM-4
Desert Tan #FB23446 / 33446(FED STD 595 PAINT): Part #STARPAK-BINR-IR-TPM-5
ENVIRONMENTAL
Temperature: -70degC to 90degC (-95degF to 194degF)
Altitude: -213m(-700ft) to 21.336m(70,000ft)
Vibration: 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-461E/F,and SAEJ1455
