Product Description
Extreme Dual Mode Antenna, Low Profile Patch, IRIDIUM Satellite Telephone and GPS, Bulkhead Mount

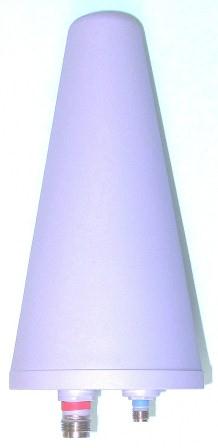

BINL1RR-P-XT-1-FKM Dual-Mode Tri-Band Satellite Antenna, IRIDIUM/INMARSAT/GPS and GPS by ANTCOM, Helix High Gain, Marine Harsh Environment Ruggedized Design
Mounting profile: FKM(Flat Bulkhead Mount)
This Kit featuring a Helix Hi-Gain Antenna, is designed to provide highest performance of all antennas and significantly exceeds the antenna performance that is included with the handset.
Allows the handset or IRIDIUM/INMARSAT/GPS and GPS Terminal to be used inside any Vehicle, Vessel or Fixed Building with Mast, or raised mounting above obstructions Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 283g(10oz)
Compatible also with all Iridium, Inmarsat, and GPS Satellite Products by Telstra, SatCom Global, AST and other 3rd party suppliers
Overview
BINL1RR-P-XT-1-FKM Dual-Mode Tri-Band Satellite Antenna, IRIDIUM/INMARSAT/GPS and GPS by ANTCOM, Helix High Gain, Marine Harsh Environment Ruggedized Design
Mounting profile: FKM(Flat Bulkhead Mount)
This Kit featuring a Helix Hi-Gain Antenna, is designed to provide highest performance of all antennas and significantly exceeds the antenna performance that is included with the handset.
Allows the handset or IRIDIUM/INMARSAT/GPS and GPS Terminal to be used inside any Vehicle, Vessel or Fixed Building with Mast, or raised mounting above obstructions Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 283g(10oz)
Compatible also with all Iridium, Inmarsat, and GPS Satellite Products by Telstra, SatCom Global, AST and other 3rd party suppliers
Tech Specs
BINL1RR-P-XT-1-FKM Technical Specifications
Mounting profile: FKM(Flat Bulkhead Mount)
ELECTRICAL
FULL SPECS AVAILABLE UPON REQUEST incl. Multi Frequency, Beam Width, and Elevation Gain
GPS Specs:: L1
Axial Ratio: 1(db) to 3(db)
Radiation Pattern: Hemispherical
Polarization: RHCP
VSWR: <2.0:1
DC Grounding: YES(Lightning Protection)
LNA OPTION(for GNSS or GNSS/Rx only versions)
LNA Gain: 33dB
LNA Noise figure: 3.0dB
LNA P1dB out: 13dBm
LNA DC Power: (2.5 to 24)V / <50mA
Power Handling for Passive: 10W or LNA ACTIVE: 1 Watt CW
CONNECTOR
Base Exit TNC-female by default
Email your alternate using Connector reference, as follows:
T: TNC, TB: TNC Bulkhead,
S: SMA, SB: SMBR,
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N Bulkhead
SMC or SSMC or SSMB, SSMA
DIMENSIONS
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 283g(10oz)
PROPERTIES
Material: 6061-T6 Aluminum Alloy Base, Ruggedized Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol, Corrosion Resistance and Fire Retardant
Finish: Hermetically Sealed (Teflon Coated – Part #BINL1RR-P-XT-1-FKM ONLY )
COLOURS
Gloss White is supplied by default
Email your alternate using colour reference, as follows:
Teflon Coated Grey(for Marines/Buoy/Extreme applications): Part #BINL1RR-P-XT-1-FKM
Gloss White #17925(per USA FED-STD 595B PAINT) : Part #BINL1RR-P-XT-1-FKM
Lusterless Grey #36320(per USA FED-STD 595B PAINT) : Part #BINL1RR-P-XT-1-FKM
Olive Drab Green #34094(per USA FED-STD 595B PAINT) : Part #BINL1RR-P-XT-1-FKM
Lusterless Black #37038(per USA FED-STD 595B PAINT) : Part #BINL1RR-P-XT-1-FKM
Desert Tan #FB23446 / 33446(FED STD 595 PAINT): Part #BINL1RR-P-XT-1-FKM
ENVIRONMENTAL
Temperature: -70degC to 90degC (-95degF to 194degF)
Altitude: -213m(-700ft) to 21.336m(70,000ft)
Vibration: 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium and Inmarsat Certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-461E/F,and SAEJ1455
ACCEPTANCE TEST PROCEDURE
ATP-GPS-L1L2-100
