Tech Specs
STARPAK-BIN-XT-1-FBM
Ruggedized Extreme Helix Antenna for IRIDIUM Satellite Telephone featuring Flat Bracket Mount
Mounting Profile

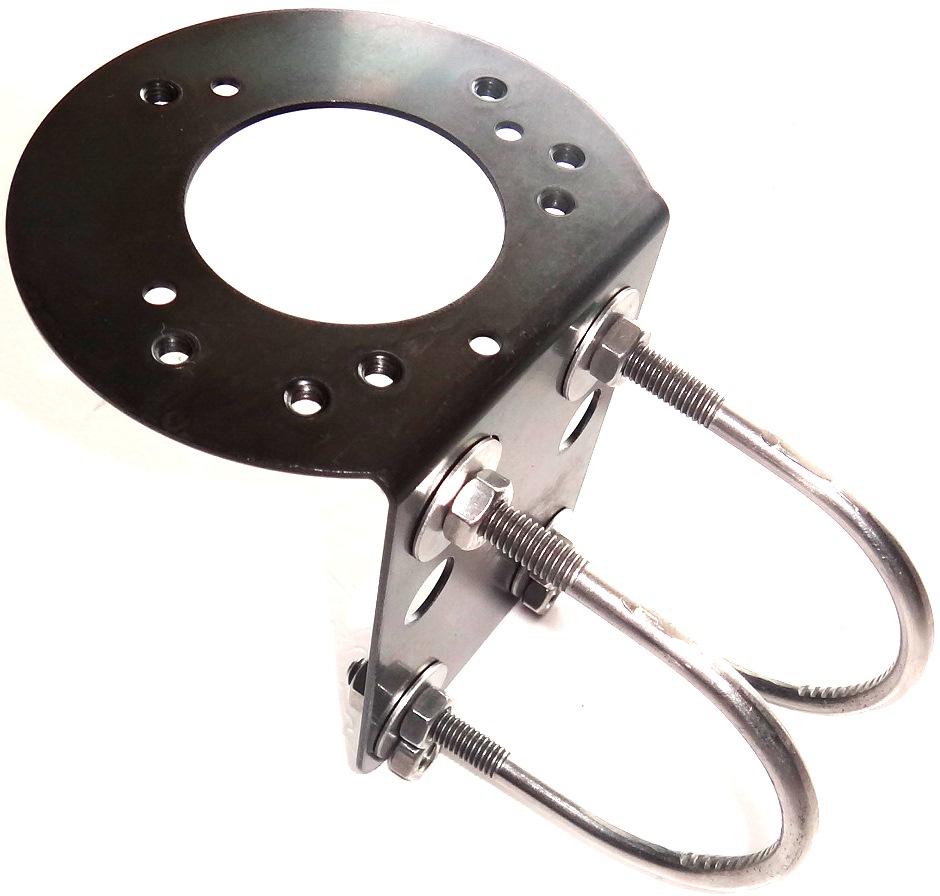

Flat Bracket Mount(not included) as for 4×4, Truck Bull Bar, Remote Building, or Marine.
Connector: Base Exit, TNC-Male
Mechanical
Diameter: 133(5.266in)
Height: 133mm(5.266in)
Weight: 188g(6.6oz).
Material: 6061-T6 Aluminum Alloy base, Composite Radome, Impact, Abrasion, UV, Solvent, and Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel Base Iridite PER/ MIL-C-5441F
Environmental
Extreme Low to very High Temperature Operating Range -70° to 90°C (-95° to 194°F)
Altitude: 21.336m(70,000ft)
Vibration: 30 G’s
Leakage: Hermetically Sealed
IRIDIUM TECHNICAL SPECIFICATIONS
Frequency: 1609 – 1626MHz
Radiation Pattern: Hemispherical
Polarization: RHCP
VSWR: <2:1
Impedance: 50ohms
Gain(bBlc)
..........................Free Space...-...4ft G.P.
@ 90° (ZENITH)............. 1.1...-... 3.7
@ 10°.............................-0.9..-......0.0
@ 20°.............................-0.2..-..... 2.0
@ 30°............................. 0.3..-..... 2.0
@ 45°............................. 0.6..-..... 1.5
@ 70°............................. 0.3..-..... 1.3
BEAM WIDTH(3dB)...173Deg..-...155Deg
Axial Ratio: 1 to 3dB
Lightning Protection: DC Grounding
Network, USA Federal, and Military Specifications
Manufactured in USA
Compatible with the Iridium Satellite Network.
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
MANUFACTURER COMPLIANCE
1) ISO 9001-2008: Registered through SGS
2) TSO C-144: Registered through FAA
3) Environmental: TCA/DO-160D, TSO C144
4) Lightning: DO-160F, Direct Effects, Section 23
5) Electrical: TSO C144, RTCA/DO-228/DO-254, Mil-STD-461F
6) CE: EMC Directive 89/336/EEC European Union) & 47CFR, Part 15, Subpart B (FCC)
7) EMC.Emission: EUROPEAN STANDARD EN 55022: 2006 / UNITED STATES STANDARD 47 CFR PART 15, SUBPART B
8) Immunity: EUROPEAN STANDARD EN 55024: 1998, Amendment A2: 2003
9) Pick/Place, Soldering, Circuit Boards: IPC JSTD-001D, IPC-A-610D, ESD-STD-20.20, JESD-625a, IPC-A-610C Class 3
10) Printed Circuit Board (PCB): IPC-A-600G.
11) Connectors/Adapters/Cables: MIL-PRF-39012/55339, IPC JSTD-001D
12) Stainless Steel Material for Screws: DFARS 252-225-7014/DFARS 225.872-1, and MS Standards.
13) Aluminum Material: A16061-T6 per ASTM-B-221.
14) Chem Film: Mil-C-5541F Type I Class 1A for Yellow, Type II Class 1A for Clear.
15) Black Anodize: MIL-A-8625F Type II Class II.
16) REACH Compliance: SVHC Candidate List Published by European Chemical Agency (ECHA) on Oct-28-2008 Regarding Regulation (EC) No 1907/2006 Concerning REACH
17) CAGE Code: 3CVE1; ECCN: 5A991.b.4; HTS: 8529104000
18) Country of Origin: USA.
These commodities and technology are from the United States and exportable in accordance with the export
Administration regulations. Diversion contrary to U.S. law is prohibited.
