Product Description
STARPAK-61R-IR-T4 Antenna Removable Kit
This Kit featuring a Helix Hi-Gain Antenna, and is designed to provide highest performance of all antennas for Land Vehicles.
This is the best Iridium Antenna available for OHS, safety and emergency reasons to Maximize Signal Strength and Reception.
Allows the Handset or Iridium Terminal to be used inside any Vehicle, Vessel or Fixed Building with raised mounting profile above obstructions
Molded Radome is securely mounted on a flexible Aluminum pole that will “whip” upon contacting or being impacted by obstacles at speed and not break.
deal for use on Cars, Buses, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.

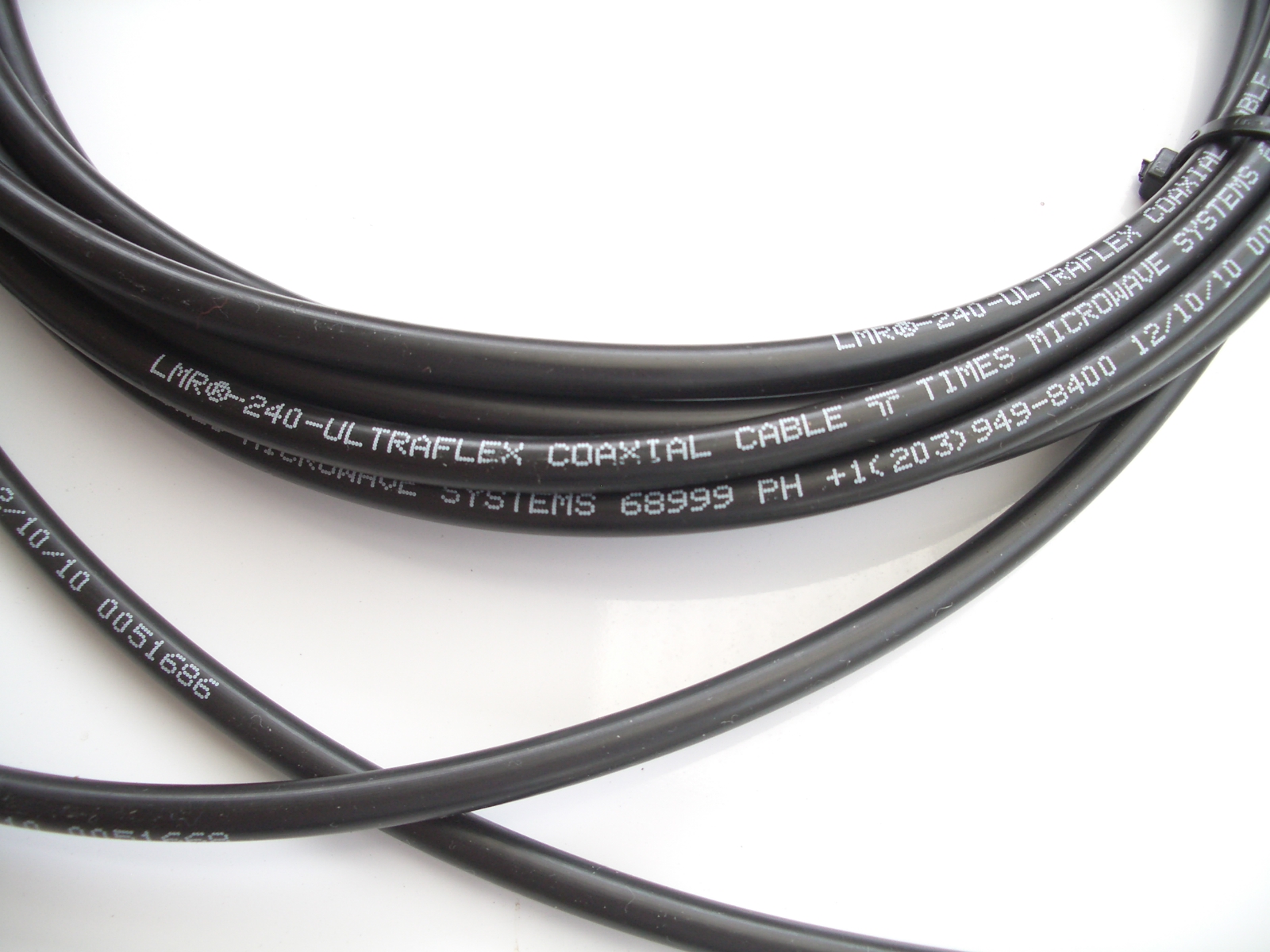

Cable Basics: 1x 4.5m(14.7ft) LMR240 UltraFlex cable with TNC/M to SMA/Male Connectors
Cable Basics – Tail: 1x 1.0m(3.3ft) pole exit Antenna tail cable hermetically sealed into Anodised Aluminum Antenna Pole Body, and terminated with SMA/Female connector
Overall Size: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Mounting Bolt Size: 1x 1/18 threaded
Mounting Hole Size: 17.0mm Dia
When changing vehicles, instead of costly cable recovery, the 4.5m cable extension section can be left insitu instead because the cable usually gets damaged in the process.
COLOURS
Black is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-61RIR-T1
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-61RIR-T2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-61RIR-T3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-61RIR-T4(supplied by default)
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Overview
STARPAK-61R-IR-T4 Antenna
This Kit featuring a Helix Hi-Gain Antenna with 1m(3.3ft) cable tail, is designed to provide highest performance of all antennas.
Removable design for semi-permanent installations for fast and easy removal, or where the Extension cable cannot be recovered..
This is the best Iridium Antenna available for OHS, safety and emergency reasons to Maximize Signal Strength and Reception.
Allows the handset or Iridium Terminal to be used inside any Vehicle, Vessel or Fixed Building with raised mounting profile above obstructions .
Cable Basics: 1x 4.5m(14.7ft) LMR240 UltraFlex cable with TNC/M to SMA/Male Connectors
Cable Extension is a 4.5m LMR240 Ultraflex for convenient cable entry through Fire Walls and Bulk Heads.
Spring Steel Mount with flexible Aluminum pole design that will “whip” upon contacting or being impacted by obstacles at speed and not break.
Ideal for use on Cars, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Tech Specs
STARPAK-61R-IR-T1 Antenna Removable Kit
Cable Basics: 1x 4.5m(14.7ft) LMR240 UltraFlex cable with TNC-Male Connector for all Iridium devices.
Cable Basics – Tail: 1x 1.0m(3.3ft) base-exit Antenna tail cable hermetically sealed into Antenna Body terminated with SMA-Female connector
Overall Size: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Mounting Bolt Size: 1x 1/18 threaded
Mounting Hole Size: 17.0mm Dia
Weight with cable tail: 375g
ELECTRICAL
FULL SPECS AVAILABLE UPON REQUEST incl. Multi Frequency, and Elevation Gain
Axial Ratio: 1(db) to 2(db)
Radiation Pattern: Hemispherical
Polarization: RHCP
VSWR: <1.5:1
DC Grounding: YES(Lightning Protection)
CONNECTOR
Extension Cable is Terminated with a TNC-Male Connector by default to suit all Iridium Device applications.
Email your required alternate Connector using the reference, as follows:
T: TNC, TB: TNC-Bulkhead,
S: SMA,
P: PINS
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N, NB: N-Bulkhead
SMC or SSMC or SSMB, SSMA
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Black is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-61R-IR-T1
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-61R-IR-T2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-61R-IR-T3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-61R-IR-T4(supplied by default)
ENVIRONMENTAL
Temperature: -65degC to 85degC (-67degF to 185degF)
Wind Speed: 220kph(135mph)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, and SAEJ1455
