Product Description

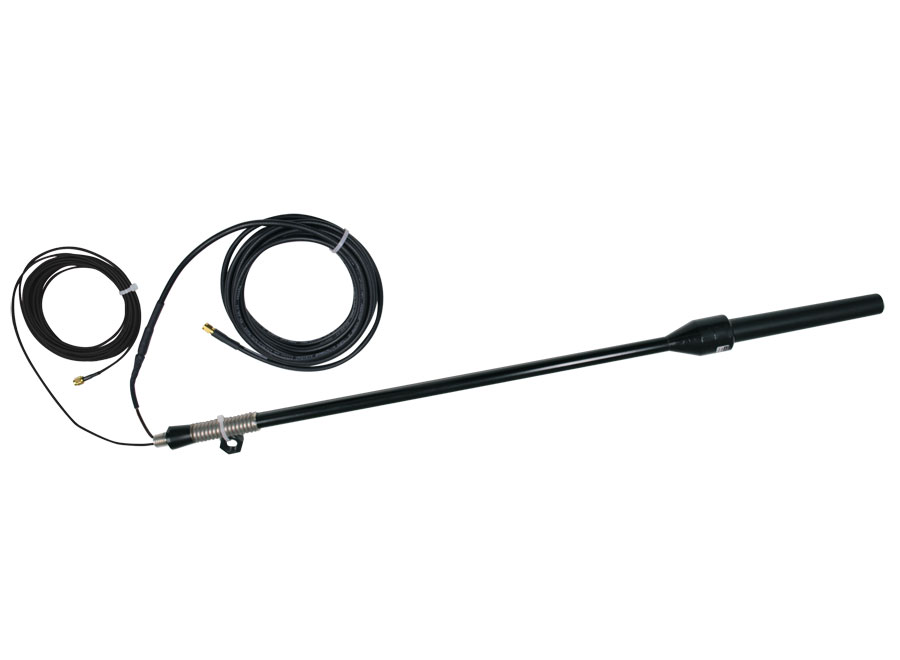

STARPAK-61R-IR-GPS-DM-4 Dual Mode Hi-Gain Helix Antenna, IRIDIUM and GPS
This Kit featuring a Helix Hi-Gain Antenna, is designed to provide highest performance of all antennas and significantly exceeds the antenna performance that is included with the handset.
Allows the GPS and Iridium Handset or Terminal to be used inside any Vehicle, Vessel or Fixed Building with raised mounting profile above obstructions .
Cable Basics: 2x 5.0m(16.4ft) base exit Antenna tail cables hermetically sealed into Anodized Aluminum Antenna Pole Body.
Cables Terminated with a SMA-Male Connectors by default.
Cable is 2x one piece, fixed LMR240.
This is a High-Performance Helix Hi-Gain Antenna within a molded Radome securely and hermetically mounted on a flexible Aluminum pole that will “whip” upon contacting or being impacted by obstacles at speed and not break.
The antenna radome is securely molded and mounted onto the pole, and is ideal for use on Cars, SUV’s, Trucks Buses and Heavy Transport or Earth Moving Equipment where it is not desirable to have a fixed mounted antenna that could easily be permanently damaged by branches, birds, or other obstacles impacting a Rigid Antenna
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Basic Specs
Length: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Mounting Bolt Size: 5/8 – 11 threaded
Mounting Hole Size: 17.0mm Dia
Weight with cable: 566g(20oz)
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Black is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-61R-IR-GPS-DM-1
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-61R-IR-GPS-DM-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-61R-IR-GPS-DM-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-61R-IR-GPS-DM-4(supplied by default)
ENVIRONMENTAL
Temperature: -65degC to 85degC (-67degF to 185degF)
Wind Speed: 220kph(135mph)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, and SAEJ1455
Compatible with all GPS and Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom Global and other 3rd party suppliers
Overview
Features – STARPAK-61R-IR-GPS-DM-4
This is the best Iridium Antenna available for OHS, safety and emergency reasons to Maximize Signal Strength and Reception.
This Kit featuring a Helix Hi-Gain Antenna is designed to provide highest performance of all antennas.
Allows the GPS Device, Handset or Iridium Terminal to be used inside any Vehicle, Bus, Vessel or Fixed Building with raised mounting profile above obstructions .
Antenna Cable Basics: 2x 5.0m(16.4ft) base exit Antenna tails cable hermetically sealed into Anodized Aluminum Antenna Pole Body.
Molded Radome securely mounted on a flexible Aluminum pole that will “whip” upon contacting or being impacted by obstacles at speed and not break.
Ideal where it is not desirable to have a fixed mounted antenna that could easily be damaged by branches, birds, or other obstacles impacting a Rigid Antenna
Compatible with all GPS, and Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Choice of colours
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Easy installation cabling with small SMA connector.
Made in USA, Iridium Certified Product, low loss cable from Times Microwave Systems.
Tech Specs
Technical Specifications – STARPAK-61R-IR-GPS-DM-4
ELECTRICAL
FULL SPECS AVAILABLE UPON REQUEST incl. Multi Frequency, and Elevation Gain
Axial Ratio: 1(db) to 2(db)
Radiation Pattern: Hemispherical
Polarization: RHCP
VSWR: <1.5:1
DC Grounding: YES(Lightning Protection)
CABLE
Made in USA by Times Microwave
Cable configuration: Base-exit from pole, hermetically sealed
CONNECTOR

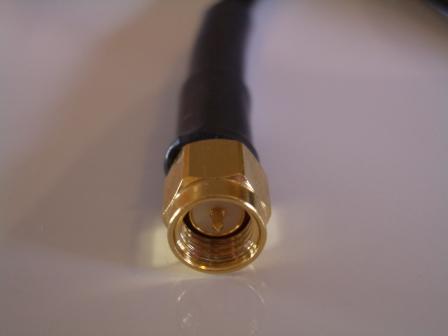

Cable is Terminated with a SMA-Male Connector by default.
Email your required alternate Connector using the reference, as follows:
T: TNC, TB: TNC-Bulkhead,
S: SMA,
P: PINS
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N, NB: N-Bulkhead
SMC or SSMC or SSMB, SSMA
DIMENSIONS
Overall Size: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Mounting: 5/8-11 threaded CB Mount
Mounting Hole Size: 17.0mm Dia
Weight with cable: 566g(20oz)
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS – Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-61R-IR-GPS-DM-1
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-61R-IR-GPS-DM-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-61R-IR-GPS-DM-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-61R-IR-GPS-DM-4(supplied by default)
ENVIRONMENTAL
Temperature: -65degC to 85degC (-67degF to 185degF)
Wind Speed: 220kph(135mph)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, and SAEJ1455
