Product Description

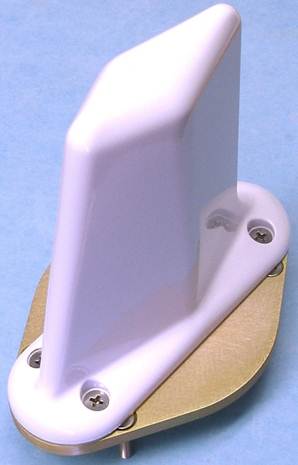

STARPAK-42B-TSO-IR-A1 FAA Approved TSO Helix Antenna, IRIDIUM AERO Fin 743 ARINC
Mounting profile:Commonly referred to as Fin, Tail Fin or Blade style
This Helix Fin profile antenna is designed for maximum Hi-Gain Aeronautical signal performance.
Enables the Satellite Telephone to be used inside any Aircraft.
Mounting
Mounting: Flat fixed Mount, with gasket and 4x 10-32 Stainless Steel Mounting Screws Supplied
Size
Height: 123.83mm(4.875in)
Length: 133.35(5.25in)
Width: 89.66(3.53in)
Antenna Weight: 146g(5.15oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-42BIR16RR-A1
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-42BIR16RR-A2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-42BIR16RR-A3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-42BIR16RR-A4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-42BIR16RR-A5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Vibration: > 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
Overview
STARPAK-42B-TSO-IR-A1 FAA Approved TSO Helix Antenna, IRIDIUM AERO Fin Profile 743 ARINC
Mounting profile: Commonly referred to as Fin, Tail Fin or Blade style.
This antenna is designed for maximum Hi-Gain Aeronautical signal performance.
Enables the Satellite Telephone to be used inside any Aircraft.
BASICS
Manufactured in USA
Iridium certified product
Colours: Gloss White supplied by default, also available in MIL-SPEC Lusterless Black and Grey, Olive Drab Green, and Desert Tan
Includes individual TSO / FAA Certification Documents
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
Tech Specs
STARPAK-42B-TSO-A1 FAA Approved TSO Helix Antenna, IRIDIUM AERO Fin Profile 743 ARINC
Mounting profile: Commonly referred to as Fin, Tail Fin or Blade style
BASICS
Mounting
Connector: Base Exit, TNC-Female
Mounting: Flat fixed Mount, with gasket and 4x 10-32 Stainless Steel Mounting Screws Supplied
Size
Height: 123.83mm(4.875in)
Length: 133.35(5.25in)
Width: 89.66(3.53in)
Antenna Weight: 146g(5.15oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-42BIR-TSO-IR-A1 (Supplied By Default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-42BIR-TSO-IR-A2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-42BIR-TSO-IR-A3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-42BIR-TSO-IR-A4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-42BIR-TSO-IR-A5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Vibration: > 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
Includes individual TSO / FAA Certification Documents
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
