Product Description

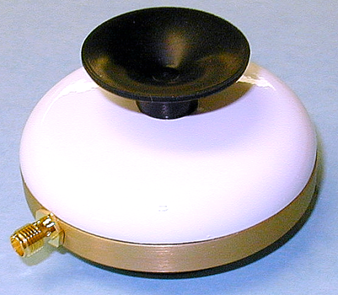

STARPAK-2GNL-GMNS-1 GPS Portable Aero and Marine Mini Suction Patch Antenna
Mounting profile: Internal Clear Screen, Fixed and Magnetic Mount
This antenna is designed for maximum Internal Aircraft low profile performance.
Enables the GPS Device to be used inside any Aircraft.
BASICS
Connector: Side Exit, SMA-Female
Mounting: Suction Cap
Antenna Size: 66.04mm(2.60in) Dia x 17.53mm(0.690in) High
Antenna Weight: 146g(5.15oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-1(Supplied by Default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all L1 GPS Satellite Products
Overview
STARPAK-2GNL-GMNS-1
Mounting profile: Suction Cap, Fixed and Magnetic Mount
This antenna is designed for maximum Internal low profile performance.
Simply push suction cap against any screen surface facing upwards.
Fast and easy deployment inside any Building, Vehicle, Marine, or Aircraft.
BASICS
Manufactured in USA
Colours: Gloss White supplied by default, also available in MIL-SPEC Lusterless Black and Grey, Olive Drab Green, and Desert Tan
Tech Specs
STARPAK-2GNL-GMNS-1
Mounting profile: Suction cap for Internal Clear Screen.
This antenna is designed for maximum Internal Aircraft low profile performance.
Enables the GPS Device to be used inside any Aircraft.
BASICS
Connector: Side Exit, SMA-Female
Mounting: Suction Cap
Antenna Size: 66.04mm(2.60in) Dia x 17.53mm(0.690in) High
Antenna Weight: 146g(5.15oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-1(Supplied by Default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-2GNL-GMNS-5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all L1 GPS Satellite Products and all other 3rd party suppliers
