Product Description
STARPAK-2GN-MNS-1 Antenna, IRIDIUM Mini-Magnetic Patch
Mounting profile: Hi-Strength Magnetic for user friendly mobile fast deployment and general travel use.
This antenna is designed to provide higher performance than the Handset, or included PAA (Portable Auxiliary Antenna)
Enables the Satellite Telephone to be used inside any Vehicle or Vessel.

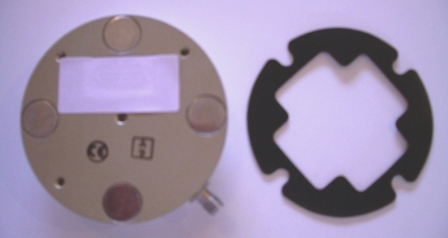

The antenna can be magnetically mounted onto the roof and is ideal for use on cars or sensitive surfaces where it is not desirable to have a permanently mounted antenna and a low aspect profile is needed.
BASICS
Diameter: 68.8mm(2.70in)
Height: 22.04mm(0.868in)
Weight: 158g(5.5oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-2GN-MNS-1 (supplied by default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-2GN-MNS-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-2GN-MNS-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-2GN-MNS-4
Desert Tan #FS 234466 or 33446(per USA FED-STD 595B) : Part# STARPAK-2GN-MNS-5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Wind Speed: 220kph(135mph)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and all other 3rd party suppliers
Overview
STARPAK-2GN-MNS-1
Mounting profile: Hi-Strength Magnetic for user friendly mobile Portable use..
This antenna is designed to provide higher performance than the antenna included with the handset,.
Enables the Satellite Telephone to be used inside any Vehicle or Vessel.
The antenna can be magnetically mounted onto the roof and is ideal for use on cars or sensitive surfaces where it is not desirable to have a permanently mounted antenna and a low aspect profile is needed.
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and all other 3rd party suppliers
Tech Specs
STARPAK-2GN-MNS-1
Diameter: 68.8mm(2.70in)
Height: 22.04mm(0.868in)
Weight: 158g(5.5oz).
Material: 6061-T6 Aluminum Alloy base, Composite Radome, Impact, Abrasion, UV, Solvent, and Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel Base Iridite PER/ MIL-C-5441F
Environmental
Extreme Low to very High Temperature Operating Range -55° to 85°C (-67° to 185°F)
Altitude: 21.336m(70,000ft)
Vibration: 30 G’s
Leakage: Hermetically Sealed
IRIDIUM TECHNICAL SPECIFICATIONS
Frequency: 1609 – 1626MHz
Radiation Pattern: Hemispherical
VSWR: <2.0:1
Impedance: 50ohms
Gain(bBlc)
..........................Free Space...-...4ft G.P.
@ 90° (ZENITH)............. 3.0...-...-0.5
@ 10°.............................-4.5..-.....-4.0
@ 20°.............................-3.3..-.....-1.2
@ 30°.............................-1.5..-.....-0.3
@ 60-90°....................>. 1.8..-..> -1.3
BEAM WIDTH(3dB)……85Deg.-.140Deg
Axial Ratio: 3dB
Lightning Protection: DC Grounding
Network, USA Federal, and Military Specifications
Manufactured in USA
Compatible with the Iridium Satellite Networks.
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
MANUFACTURER COMPLIANCE
1) ISO 9001-2008: Registered through SGS
2) TSO C-144: Registered through FAA
3) Environmental: TCA/DO-160D, TSO C144
4) Lightning: DO-160F, Direct Effects, Section 23
5) Electrical: TSO C144, RTCA/DO-228/DO-254, Mil-STD-461F
6) CE: EMC Directive 89/336/EEC European Union) & 47CFR, Part 15, Subpart B (FCC)
7) EMC.Emission: EUROPEAN STANDARD EN 55022: 2006 / UNITED STATES STANDARD 47 CFR PART 15, SUBPART B
8) Immunity: EUROPEAN STANDARD EN 55024: 1998, Amendment A2: 2003
9) Pick/Place, Soldering, Circuit Boards: IPC JSTD-001D, IPC-A-610D, ESD-STD-20.20, JESD-625a, IPC-A-610C Class 3
10) Printed Circuit Board (PCB): IPC-A-600G.
11) Connectors/Adapters/Cables: MIL-PRF-39012/55339, IPC JSTD-001D
12) Stainless Steel Material for Screws: DFARS 252-225-7014/DFARS 225.872-1, and MS Standards.
13) Aluminum Material: A16061-T6 per ASTM-B-221.
14) Chem Film: Mil-C-5541F Type I Class 1A for Yellow, Type II Class 1A for Clear.
15) Black Anodize: MIL-A-8625F Type II Class II.
16) REACH Compliance: SVHC Candidate List Published by European Chemical Agency (ECHA) on Oct-28-2008 Regarding Regulation (EC) No 1907/2006 Concerning REACH
17) CAGE Code: 3CVE1; ECCN: 5A991.b.4; HTS: 8529104000
18) Country of Origin: USA.
These commodities and technology are from the United States and exportable in accordance with the export
Administration regulations. Diversion contrary to U.S. law is prohibited.
