Product Description

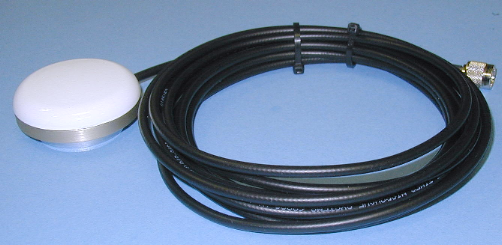

STARPAK-2GN-IR-196-1 Antenna, IRIDIUM Mini-Magnetic Patch
Mounting profile: Hi-Strength Magnetic for user friendly mobile fast deployment and general travel use.
This antenna is designed to provide higher performance than the Handset, or included PAA (Portable Auxiliary Antenna)
Enables the Satellite Telephone to be used inside any Vehicle or Vessel.

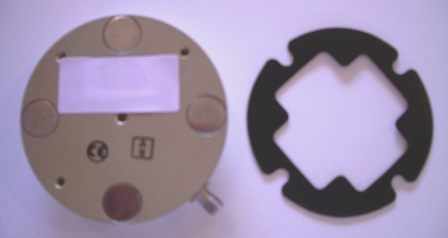

The antenna can be magnetically mounted onto the roof and is ideal for use on cars or sensitive surfaces where it is not desirable to have a permanently mounted antenna and a low aspect profile is needed.
BASICS
Antenna Size: 66.04mm(2.60in)Dia x 14.81mm(0.583in) Thick
Antenna Weight: 146g(5.5oz).
Cable Basics: 5.0m(16.4ft or 196in) LMR195 Cable, made in USA by Times Microwave
Cable Weight: 208g(7.3oz)
Total Weight: Antenna and Cable: 354g(12.8oz)
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-1 (supplied by default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Wind Speed: 220kph(135mph)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and all other 3rd party suppliers
Overview
STARPAK-2GN-IR-196-1
Mounting profile: Hi-Strength Magnetic for user friendly mobile Portable use..
This antenna kit is designed to provide higher performance than the antenna included with the handset,.
Enables the Satellite Telephone to be used inside any Vehicle or Vessel.
The antenna can be magnetically mounted onto the roof and is ideal for use on cars or sensitive surfaces where it is not desirable to have a permanently mounted antenna and a low aspect profile is needed.
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and all other 3rd party suppliers
Tech Specs
STARPAK-2GN-IR-196-1
ELECTRICAL
FULL SPECS AVAILABLE UPON REQUEST incl. Multi Frequency, and Elevation Gain
Axial Ratio: 3db
Radiation Pattern: Hemispherical
Polarization: RHCP
VSWR: <2.0:1
Impedance: 50 Ohms
DC Grounding: YES(Lightning Protection)
Antenna & Cable
Antenna Size: 66.04mm(2.60in)Dia x 14.81mm(0.583in) Thick
Antenna Weight: 146g(5.5oz).
Cable Basics: 5.0m(16.4ft / 196in) LMR195 Cable, is hermetically sealed into antenna side, and made in USA by Times Microwave
Cable Weight: 208g(7.3oz)
Total Weight, Antenna and Cable: 354g(12.8oz)
CONNECTOR
Cable is Terminated with a SMA-Female Connector by default
Includes 1x IRIDIUM SMA-M to TNC-M Adapter for all Iridium Devices.
Email your required alternate Connector using the reference, as follows:
T: TNC, TB: TNC-Bulkhead,
S: SMA,
P: PINS
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N, NB: N-Bulkhead
SMC or SSMC or SSMB, SSMA
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-1 (supplied by default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-2GN-IR-196-5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Wind Speed: 220kph(135mph)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
