Product Description

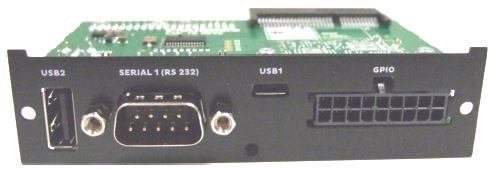

ST100303-003 SkyWave SG-7100 Telematics Expansion Card
This is an original spare part or upgrade part for the SG-7100
The Telematics expansion card offers the following features:
USB1: USB on-the-go (OTG) interface on micro-AB type connector that supports both host and device configurations
USB2: USB host interface on Type-A connector
RS-232 5-wire interface on DB9 Male connector, DTE interface (UART0)
8-pin connector with the following default input/output configuration:
4 digital/analog inputs, 0-3.3 volt range in analog mode
2 analog inputs, 0-10 volt range
3 digital outputs
3-wire RS-232 AUX serial port (UART4), this can also be used as a 2-wire RS-485
CAN bus interface
1-wire bi-directional interface
Two SIM card slots
Accelerometer: 3-axis, 12-bit resolution
Jumpers for optional I/O or RS-485 configuration
