Product Description
SM201340-001 Skywave SG-7100 Cellular Gateway base unit for AMEA
Ideal for sending mission-critical data from the field to the back office, the versatile SG-7100 creates a vital communications link that enables functions like dispatch, electronic forms/signatures, location-based services, HOS (hours of service) reports, collection of equipment data and much more.
The expandable, fully programmable SG-7100 also supports multiple LAN and WAN interfaces and features an onboard web server for forms in logistics applications.
Designed to accelerate time to market, the smart device’s configurable applications, modular hardware architecture and optional expansion cards offer the flexibility to meet evolving asset management challenges.
The cellular gateway platform takes the next step in M2M communications for fleet management, in-cab messaging, workflow automation, supervisory control and data acquisition (SCADA) applications.
Key Features
Fully Programmable and Configurable
Modular Hardware Architecture
Multiple configuration options for cellular, Wi-Fi, satellite, and ethernet networking
One-wire, serial, USB, Ethernet, digital and analog peripheral port options.
Integrated SkyWave Lua Services Framework and open Linux environment.
Integrated HTML 5 Compatible Web Server
RELIABLE CONNECTIVITY
Choose your options – Cellular(std), Cell WiFi, Cell SAT, Cell SAT WiFi:
Cellular: HSPA Penta-Band: 800/850/1800/1900/2100 MHz (includes Australian 3G/Next-G)
Wi-Fi: IEEE 802.11a/b/g/n

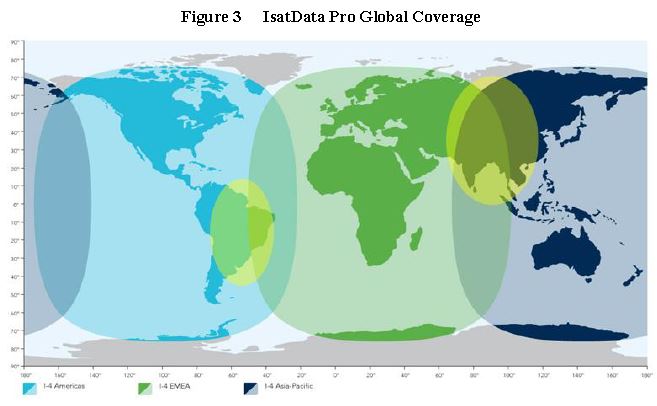

Satellite: Inmarsat IDP (IsatData Pro) Global Network to fulfill the requirements of your application and enjoy uninterrupted connectivity.
Overview
SM201340-001
SkyWave SG-7100 Cellular Gateway for AMEA(The Americas Region
Transportation
• Fleet management
• Workflow automation
• Vehicle maintenance
• Telemetry
• Dispatch and navigation
• Wi-Fi access point
SCADA and Fixed Equipment
• Primary/backup communication for SCADA systems
• Secure VPN IP access for PLCs, RTUs and other equipment
• Remote sensor data collection and control
• Building automation
• Video surveillance
• Device-agnostic connectivity
EASY PROGRAMMING/CONFIGURATION
Choose one of SkyWave’s configurable applications or create your own through the easy to use Lua and open Linux development environments.
INTEGRATION FLEXIBILITY
SkyWave’s integration flexibility allows for the development of a wide range of M2M applications.
A built-in web server enables workforce automation functions.
QUICK TO DEPLOY AND EASY TO MANAGE IN THE FIELD
Connect to field peripherals and instruments using serial, Ethernet, onewire, digital and analog ports.
SMALL FOOTPRINT
Easy installation
Rugged design
Optimized for diverse environments.
Tech Specs
SM201340-001
SkyWave SG-7100 Cellular Gateway for AMEA(The Americas Region
Physical
Dimensions: 11.5 x 10.5 x 4.5cm
Weight: xx.xkg(Gateway only)
Shipping Weight: xx.xkg(includes all components)
ENVIRONMENTAL
• Operating temperature: -30 to 70°C
PROCESSOR AND OPERATING SYSTEM
• Processor: ARM9, 450MHz
• Memory: 64 MB
• Flash: 128MB
• Operating System: Linux Open WRT
• Application Interfaces: TCP/IP, UDP/IP, DHCP, HTTP, IP Router PPP, HTTP Web server, Telnet/SSH server, NAT, NMEA, GPS, IP forwarding
• Security: VPN (SSL v2, TLS v1), SSH server, SCP, SFTP
CELLULAR
• HSPA Penta-Band: 800/850/1800/1900/2100MHz diversity capability. Fallback to HSDPA/UMTS/EDGE/ GPRS
• EVDO Rev A Dual-Band: 800/1900 MHz diversity capability. Fallback to CDMA 1x Rev 0 and CDMA 1xRTT
• SIM: Single slot. Dual slot with telematics expansion card
CERTIFICATION
• Regulatory: Fully certified FCC, CE, IC, PTCRB,
Applicable carriers
EXTERNAL INTERFACES
• Status LEDs: Status, Communication, GPS
• Standard: 1 x 100 Mbps Ethernet
• Accelerometer: 3-axis, 12 bit
1 x USB OTG, 1 x USB host
2 x RS-232 or 1 x RS-232 and 1x RS-485
1 x CAN bus
1 x 1-wire interface
3 x Digital/Analog In
2 x Digital Out
2 x Dedicated Analog (0 to 10 V, 12 bit resolution)
• (Optional) Telematics Expansion card:
• (Optional) Serial card: 1 x RS-232,
• (Optional) Industrial Serial Card: 1 x RS-485, 1 x RS-232
WI-FI (OPTIONAL)
• Service: IEEE 802.11a/b/g/n
• Frequency: 2.4/5.8 GHz
• Operating Modes: Wi-Fi client, Soft AP
SATELLITE (OPTIONAL)
• Service: IsatData Pro (IDP), Two-way, Global
• Frequency: Rx: 1525.0 to 1559.0 MHz; Tx: 1626.5 to 1660.5 MHz
• Elevation Angle: Up to -15° to 90°
GPS
• Standalone GPS, Assisted GPS, gpsOneXTRA AssistanceTM
• Wideband GPS Processing (20MHz) for improved measurement accuracy
• Option: Dual GPS and GLONASS with optional satellite
ELECTRICAL
• Input Voltage: 9 to 32 Volts DC, Optional SAE J1455 load dump protection
• Power Consumption (Typical @12V DC):
– 2.5 mA (sleep)
– 100 mA (idle w/ GPS)
– 700 mA (peak transmitting)
DEVELOPMENT SUPPORT
• M2M Messaging: Lua Services Framework with core services and API. SDK with GUI-based development tools.
• Web Services: Web server installed.
• Optional, Configurable Device-Level Applications:
– Analytics Agent – Notifications and reports for driver behavior and vehicle/asset performance.
– AVL Agent – Facilitates integration of IDP terminals into fleet management solutions.
– Garmin Dispatch Agent – Tracking, navigation, driver communication and dispatch using Garmin devices.
– J1939 Agent – Vehicle CAN bus connectivity for monitoring driver behaviour and vehicle/asset performance.
– ARC Agent – Alert on critical events, report status proactively and control simple devices remotely.
