Product Description

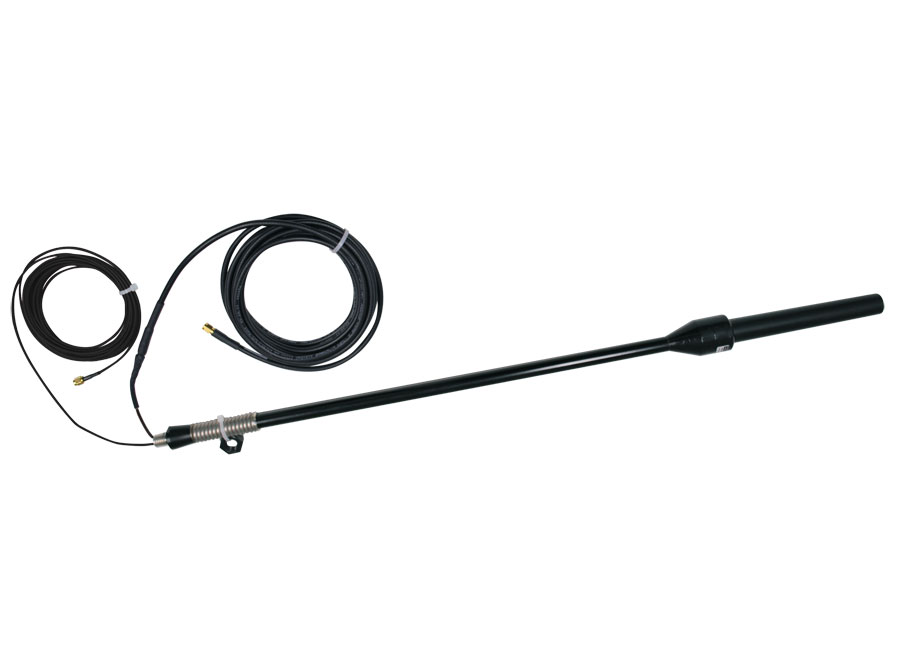

RST706 Antenna, Dual Mode GPS and IRIDIUM
This is a Whip Profile Antenna, is designed to provide high performance.
Allows the GPS Device and SatPhone Handset or Iridium Terminal to be used inside any Vehicle, Vessel or Fixed Building with raised mounting profile .
Antenna Cable Basics: 2x 5.0m(16.4ft) base exit Antenna tail cables
Mounted on a Flexible Polymer Pole that will “whip” upon contacting or being impacted by obstacles at speed and not break.
Ideal for use on Cars, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment.
This Antenna cannot be easily damaged by branches, birds, or other obstacles impacting a Rigid Antenna
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Overall Size: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Weight: 566g(20oz)
Mounting Bolt Size: 1x 1/18 threaded
Mounting Hole Size: 17.0mm Dia.
Compatible with all GPS and Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Overview
RST706
Allows the GPS Device and SatPhone Handset or Iridium Terminal to be used inside any Vehicle, Vessel or Fixed Building with raised mounting profile above obstructions .
Cable Basics: 2x 5.0m(16.4ft) LMR240 fixed cables
Molded Radome securely on a pole that will “whip” upon contacting or being impacted by obstacles at speed and not break.
Compatible with all GPS and Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Tech Specs
GENERAL SPECIFICATIONS RST706
Overall Size: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Mounting Bolt Size: 1x 1/18 threaded
Mounting Hole Size: 17.0mm Dia
Weight with cable tail: 822g(1.82lbs)
Altitude: 20,000’
Colour: Black
Finish: Weatherable Polymer Black
Operating Temp: Celsius -40° to 85° or Fahrenheit -40° to 185°
Cable: Includes 5m or 16.4 feet of LMR240 attached
IRIDIUM SPECIFICATION
Frequency: 1616 – 1626.5 MHz
Polarization: Right Hand Circular
Axial Ratio: 3.0db Max at bore sight
Impedance: 50 OHMS
VSWR: < 2.0 : 1
Power handling: 10 Watt
Connector: SMA-Male
Cable: 5.0m(16.4ft) LMR240
GPS SPECIFICATION
Frequency:1575.42 /- 10MHz
Polarization: Right Hand Circular
Axial Ratio: 3db Max at bore sight
Gain: 26 ± 2dB
Noise Figure: 2.5dB max
Impedance: 50 OHMS
VSWR: < 2.0 : 1
Voltage: 3.3V DC (35mA)
Power Handling: 1 watt
Cable: 5.0m(16.4 ft) of LMR240 for GPS
Manufactured by Beam
