$933.96
RST705 Dual Mode Antenna, IRIDIUM and GPS Magnetic Mount
With the Magnetic mount, the antenna is very easy to install and move from asset to asset and doesn’t require any holes to be drilled for fitting.
Included is 6m of both Iridium & GPS antenna cable, making the RST705 is a very cost effective solution.
This Low Profile is ideal for use on Cars, Buses, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment.
Designed to work with Beam tracking products like LeoTRAK and can work with other Iridium / GPS based devices.
RST705 Dual Mode Antenna, IRIDIUM and GPS Magnetic Mount
Iridium and GPS Mag Mount Antenna (RST705) is designed for Vehicle / Land based applications.
RST705 Mag Mount antenna is designed to be very low profile.
This antenna cannot be easily damaged by branches, birds, or other obstacles impacting a Rigid Antenna.
Made by Beam.
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
RST705
Allows the handset or Iridium Terminal to be used inside any Vehicle, Vessel or Fixed Building .

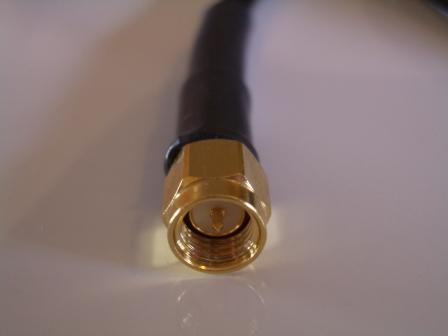

Cable Basics: 5.0m(16.4ft) LMR240 with SMA-Male Connector.
Ideal for use on Cars, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment where it is not desirable to have a fixed mounted antenna that could easily be damaged by branches, birds, or other obstacles impacting a Rigid Antenna
Basics
. Iridium approved
. Designed for harsh environments
. Small and lightweight
. 12 Month warranty
. Dual Mode GPS / Iridium
. Magnetic Mount, so no need to drill holes
. Manufactured in the USA
. Includes 6m of both GPS & Iridium antenna cable
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
RST705 Specifications
Frequency (Iridium): 1616 – 1626 MHz
Frequency (GPS): 1575.42 /- 5MHz
Polarization: Right Hand Circular
Axial Ratio: 3db Max at boresight
Amplifier Gain: Iridium: Passive, GPS L1: 26db (35mA)
Voltage: Iridium: Passive, GPS L1: 3VDC
Noise Figure: 2.5db max
Impedance: 50 OHMS
VSWR: < 2.0 : 1
Finish: Base – Aluminum, Radome – High Impact, white
Length: 84mm or 3.3 inches
Width: 56mm or 2.2 inches
Height: 21mm or 0.8 inches
Weight: 0.5Kg or 2.2lb Max, (Cable weight included)
Cable: Includes 6m or 19.7 feet of LMR240 Iridium, Includes 6m or 19.7 feet of LMR240 GPS
Altitude: 20,000ft
Connector: TNC-M Iridium, SMA-M GPS
Colour: White
Operating Temp: Celsius -40° to 70° or Fahrenheit -40° to 158°
