iridium Beam RST703 Dual Mode Antenna
iridium Beam RST703 Dual Mode Antenna

iridium Beam RST703 Dual Mode Antenna

$795.02

RST703 IRIDIUM Beam Dual Mode Antenna, Low Profile Patch, Fixed Mount
Beam RST703 dual mode Iridium & GPS patch antenna, designed predominantly for land and asset monitoring applications.

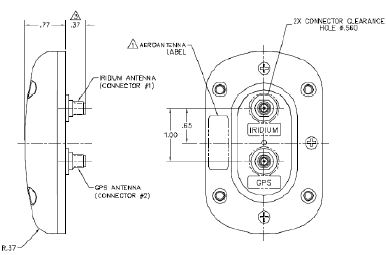

The RST703 dual mode patch antenna is supplied complete with bulkhead mount that enables it to be securely mounted without the connectors being exposed to the environment.
Compatible with all Iridium and L1 GPS devices

Out of stock

SKU: RST703 Categories: , , , , , , , , , , , , , , , ,

Product Description

RST703 IRIDIUM Beam Dual Mode Antenna
Beam RST703 dual mode patch antenna is fitted with an SMA female connector for GPS and a TNC for Iridium and will work with all Beam tracking products or other Iridium / GPS based devices.
Applications
. Cars
. Trucks
. Boats

Accessory Options NOT included – available upon order
Iridium Antenna Cable
. RST932 – Beam 6m (20 feet) LMR240 Iridium antenna cable kit.
. RST933 – Beam 12m (39 feet) LMR240 / LMR 400 Iridium antenna cable kit.
GPS Antenna Cables
. RST942 – Beam 6m (20 feet) LMR195 GPS antenna cable kit.
. RST929 – Beam 9m (30 feet) LMR195 GPS antenna cable kit
. RST923 – Beam 12m (39 feet) LMR195 GPS antenna cable kit.
Additional lengths available upon request


Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers

Tech Specs

RST703 Specifications
Frequency: 1621 /- 5MHz, 1575 /- 5MHz
Polarization: Right Hand Circular
Axial Ratio: 3dB Max
Amplifier Noise Figure: 2.5dB max
Impedance: 50 OHMS
VSWR: < 2.0 : 1 Power handling: 10Watts Finish: Weatherable Polymer Weight: 285g Cable: Nil Altitude: 20,000’ SAT Connector: TNC-Male GPS Connector: SMA-male Colour: White Operating Temp: Celsius -55° to 85° or Fahrenheit -67° to 185°
Accessory Options NOT included – available upon order
Iridium Antenna Cable
. RST932 – Beam 6m (20 feet) LMR240 Iridium antenna cable kit.
. RST933 – Beam 12m (39 feet) LMR240 / LMR 400 Iridium antenna cable kit.
GPS Antenna Cables
. RST942 – Beam 6m (20 feet) LMR195 GPS antenna cable kit.
. RST929 – Beam 9m (30 feet) LMR195 GPS antenna cable kit
. RST923 – Beam 12m (39 feet) LMR195 GPS antenna cable kit.
Additional lengths available upon request
