$839.20
Parani-SD200 is a Bluetooth Class2 Serial-Adapter for transparent RS232 cable replacement.
This SD200-B10 pack includes only units antennas DC power cables
The default transmit distance of 30m can be extended using optional antennas up to 300m.

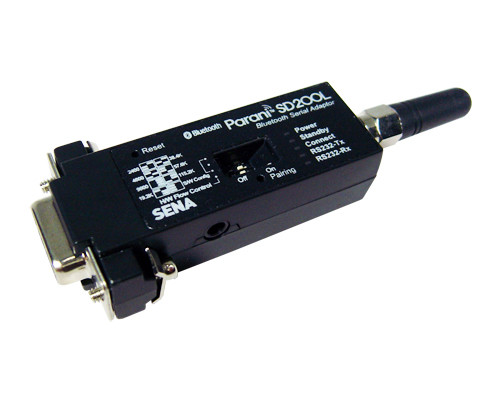

The Parani-SD200L features an internal rechargeable battery for enhanced portability.
The Parani-SD200L is a Class 2 type of Bluetooth Serial Adapters that supports 30 meters of wireless transmits distance by default. Transmit distance can be extended using optional antennas.
The Parani-SD200L has an internal rechargeable battery inside.
Features – Parani-SD200L
Provides transparent RS232 serial cable replacement.
Supports Bluetooth 1.2 stack – improved AFH(Adaptive Frequency Hoping), Fast connection
Supports Bluetooth Serial Port Profile
Interoperability with PDA, laptops etc.
Supports firmware upgrade via windows-based software(ParaniUpdater)
Working distance ( In an open field ):
Parani-SD200L: Class 2, Nom. 30 meters, up to 300m using patch antenna
Software-free configuration support using DIP-Switch and pairing button
Parani-SD200L(Internal battery)
No external drivers required.
Go to Reference Table Below………
| Parani-SD200 | Parani-SD200L | CPU | RS232, Female DB9, 1200 bps ~ 230 Kbps | CTS/RTS flow control: Default | DTR/DSR for loop-back & full transfer | Bluetooth Interface | Bluetooth v1.2 Class 2 Level – Max. 4dBm Protocols – RFCOMM, L2CAP, SDP Profiles – General Access Profile, Serial Port Profile Working distance Default Antenna – Default Antenna 30 meters | Max. Tx power | 4dBm | Receive Sensitivity | -80dbm | Antenna gain | Stub : 2dBi, Dipole : 3dBi, Patch : 9dBi | Configuration | ParaniWin, ParaniUpdater | Modem AT command set | Diagnostic LED |
Power | Power | – 5~12VDC
– Nominal current consumption : SD100 : 100mA @ 5.0Vdc approximately | – 5Vdc / 2A SMPS Adapter
– Nominal current consumption : SD200L : 70mA @ 3.7Vdc approximately | Common Power supply options
Power via a standard AC-plug DC-adapter | Battery Usage Time | – When using battery pack for SD200 :
Typical 1.5V -AA alkaline batteries (2500mAh) – Avg. 11hr@9600bps – When using internal battery for SD200L : Battery – 3.7V / 190mAh Note : Depending on the batteries and its usage environment greatly determines how long the Parani product will last for their application, i.e.battrery storage, battery capacity, battery brand and so on. | Environmental | Operating temperature: -10’C to 55’C | Storage temperature: -20’C to 70’C | Humidity: 90% Non-condensing | Physical Properties | Dimension (LxWxH)
75.3 x 30.8 x 16.2 (mm) | Dimension (LxWxH)
70 x 30.8 x 16.2 (mm) | Weight: 20g | Weight: 26g | MTBF | 394.4 Years | – | Regulatory Approvals | FCC Part 15 Subpart C Section 15.247 FCC Part 15 Subpart B ETSI EN 300 328 ETSI EN 301 489-1 ETSI EN 301 489-17 EN61000-3-2, EN61000-3-3 EN60950-1 MIC TELEC | FCC Part 15 Subpart C Section 15.247 FCC Part 15 Subpart B | SIG QDID | B012405 | – | Warranty | 3-year Limited Warranty |
