SENA MSP1000B Parani Bluetooth Access Point, 14 connections support, UK
SENA MSP1000B Parani Bluetooth Access Point, 14 connections support, UK

SENA MSP1000B Parani Bluetooth Access Point, 14 connections support, UK

$635.45

MSP1000B-02*
*This pack comes with a Wall A/C power adapter for UK use

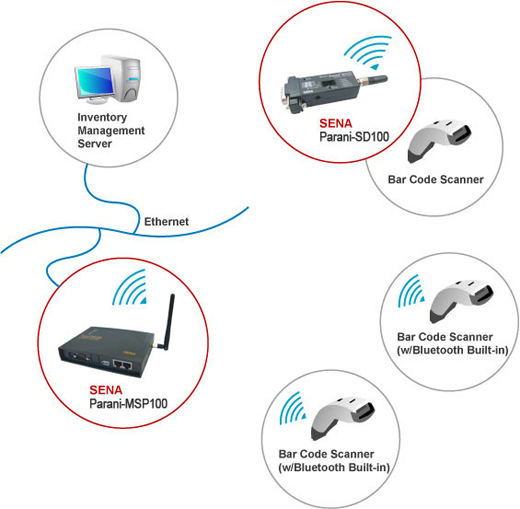

The Parani MSP1000B is an Industrial Bluetooth Access Point product line designed to connect up to 14 Bluetooth devices to the 10/100 Base-T Ethernet network with advanced features.
These Bluetooth Access Points transmit data from each Bluetooth terminal to management station via TCP/IP.

SKU: MSP1000B-02 Categories: , , , , , , ,

Product Description

The Parani MSP1000B is an Industrial Bluetooth Access Point product line designed to connect Bluetooth devices to the 10/100 Base-T Ethernet network with advanced features. These Bluetooth Access Points transmit data from each Bluetooth terminal to management station via TCP/IP.

This 14 Bluetooth connection model, the Parani-MSP1000A Bluetooth Access Point incorporates Bluetooth 2.0 Protocol Stack with Enhanced Data Rate (EDR) support; and transmits data from each Bluetooth terminal to management station via TCP/IP.

These units’ support profiles including Serial port, LAN access, PAN and FTP profiles to keep Bluetooth devices interoperating smoothly and easily.


Overview

Connects Bluetooth devices to 10/100 base-T Ethernet.
Dual Ethernet Interface support
Supports Up to 3Mbps throughput
Ideal wireless solution for the replacement of the wired multi-port serial card.
14 Bluetooth Connections support
Supports Bluetooth profiles for Serial Port, LAN Access, PAN, File Transfer and Dial up Networking.
Easy-to-use COM-Port redirector support
Flexible TCP/UDP host mode support: Multiple host connection/data transfer
System logging & port logging
Supports Python Script Engine for customization
Supports firmware upgrade via web, hyper terminal program or etc.
Supports surge protector
Supports RFC 2217, Telnet COM Port Control Protocol.

Tech Specs

Parani-MSP1000B

CPU

Freescale PowerQUICC MPC880

DRAM

64 MB

Flash

16 MB ( 2 MB of user programmable space )

Ethernet Interface

Dual 10/100 Base-T Ethernet with RJ45 connector

Supports Static IP and Dynamic IP address

Bluetooth Interface

Bluetooth v2.0 EDR
Class 1
Profiles – Serial Port, LAN Access, PAN, Dial up Networking, File Transfer
Date Rate – up to 3Mbps

Working distance

Related Products

Call Us



Head Office: (949) 485-5088

Email Us
Address

Pacific Rim USA LLC
4730 S Apache Road, ste# 300
Las Vegas, NV 89147

Parani-MSP1000

Parani-SD100
Parani-ESD110

DAT-G01R Antenna
DAT-G01R Antenna
DAT-G01R Antenna
DAT-G01R Antenna
DAT5-G01R Antenna
DAT5-G01R Antenna
PAT-G01R Antenna

–
–
–
–
–
–
–

Stub(Dafault) Antenna
DAT-G01R Antenna
DAT5-G01R Antenna
PAT-G01R Antenna
DAT5-G01R Antenna
PAT-G01R Antenna
PAT-G01R Antenna
up to 150m
up to 200m
up to 300m
up to 500m
up to 400m
up to 600m
up to 1000m
Max. Tx power

 17dBi(using DAT-G01R Antenna)

Receive Sensitivity

-88dBm

Antenna gain

DAT-G01R(Default) : 3dBi, DAT5-G01R : 5dBi, PAT-G01R : 9dBi

Point to multi point connectivity

Up to 14 connections

Network Protocols

IPv4, ICMP, ARP, TCP, HTTP, telnet, TFTP

SSH, HTTPS, SSL/TLS, DNS

SCP/SFTP/FTP, syslog, NTP

SMTP, Dynamic DNS

Security

IP Filtering

SSH v2, SSL/TLS, HTTPS, SCP, SFTP

CF Port

Flash memory

Logging

Syslog server ,CF memory

Real Time Clock

Support

Customization

Python Script engine, ELDK v4.0, 2MB internal user space

Management

Web, Telnet, SSH, Serial Console

Firmware

Upgrade using Telnet/SSH, Web, Bootp, Zmodem, TFTP

Diagnostic LED

POWER, STATUS, Ethernet0, Ethernet1

Signal Strength, No of Connections

Power

5VDC

Nominal Current Consumption : 1.2A@ 5VDC approximately

Environmental

Operating temperature: 0’C to 50’C

Storage temperature: -30’C to 85’C

Humidity: 90% Non-condensing

Physical properties

Dimension (LxWxH)

203 x 170 x 44 (mm)
7.99 x 6.69 x 1.73 ( in.)

Weight

MSP1000A : 1414g
MSP1000B : 1432g
MSP1000C : 1468g

MTBF

30.52 Years

Approval

FCC, CE, MIC, Telec

SIG QDID

B013677

Warranty

3-year Limited Warranty
