Product Description

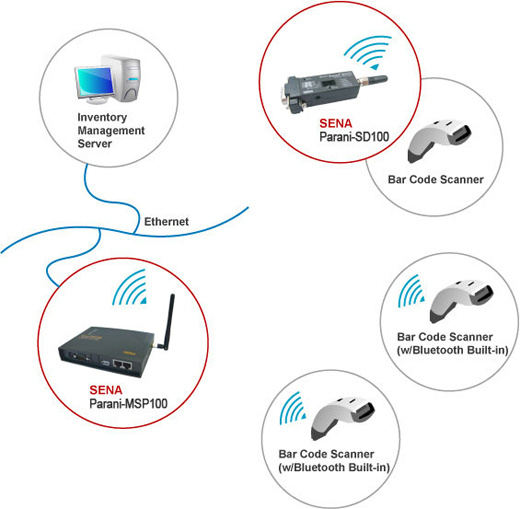

The Parani MSP100 enables multiple Bluetooth devices to connect to the Ethernet network simultaneously and withouit delay when they are within range. The Parani-MSP100 provides Class 1 Bluetooth wireless connectivity to Ethernet/Fast Ethernet. It supports all Bluetooth devices compatible with the Bluetooth Profiles for the Serial Port, Dialup, Networking, LAN Access and PAN. Along with the Serial Port Profile support, the Parani-MSP100 is the ideal solution for the replacement of the wired serial port application. The Parani-MSP100 Series supports versatile host modes for various user applications, i.e. TCP Server and Client modes for TCP/IP-Bluetooth replay applications Vertex mode for multicasting, Repeater mode, Serial Hub mode and RS232 mode. The Parani-MSP100 runs on embedded Linux operating system, with Flash memory for easy software upgrades, and built-in Web server and Web interface for quick installation, and remote configuration and management. The Parani-MSP100 uses the RADIUS protocol for user authentication.
Overview
Connects Bluetooth devices to 10/100 base-T Ethernet.
– Transmit Power – Max. 18dBm
– Receiving Sensitivity – -88dBm(0.1¾R)
– Antenna gain – Dipole : 4dBi, Patch : 8.5dBi
– Supports multi point connectivity
– Supports 7-point connectivity
(Up to Max. 14 point using USB extension dongle)
– Supports data rate of Max. 723 Kbps with greater than 150m range.
– Supports Bluetooth profiles for Serial Port, LAN Access, PAN and
Dial up Networking.
– Easy-to-use COM-Port redirector support
– Ideal wireless solution for the replacement of the wired multi-port
serial card.
– Supports HTTP/FTP/Telnet/IP sharing/DHCP/PPP/RADIUS
Authentication/SNMP.
– Easy to use Windows configuration tool available.
– Supports firmware upgrade via hyper terminal program or TFTP.
Tech Specs
Ethernet Interface:
– 10/100 Base-T Ethernet with RJ45 connector
– Supports Static IP and Dynamic IP address
Bluetooth Interface:
– Bluetooth v2.0
– Class I
– Level – 18 dBm
– Profiles – Serial Port, LAN Access, PAN, Dial up Networking
– Working distance
Parani-MSP100 Parani-SD100
Parani-ESD110
Dipole Antenna – Stub(Default) Antenna up to 150m
Dipole Antenna – Dipole Antenna up to 200m
Dipole Antenna – Patch Antenna up to 400m
Patch Antenna – Patch Antenna up to 1000m
Note : USB Extension dongle – Nominal 150 meters.
Point to multi point connectivity
– 7 (Up to Max. 14 point using USB extention dongle)
Network Protocols
– HTTP, TFTP, Telnet, DHCP Server/Client
– SNMP v1/v2/v3
– PPP server and PPP tunneling
– RADIUS
Management
– Windows Utility
– Web, Telnet, Serial Console
– Modem AT command set
Diagnostic LED:
– POWER, STATUS, ERROR, EXT, INT
Power:
– 5VDC
– 2A@ 5V
Environmental:
– Operating temperature:
0 c to 50 c
– Storage temperature:
-20 c to 66 c
– Humidity: 90% Non-condensing
Physical properties:
– Dimension (L x W x H)
147 x 112 x 32 (mm) , 5.8 x 4.4 x 1.3 ( in.)
– Weight: 225g
Certification:
– FCC, CE, MIC, TELEC
Warranty:
– 3-year limited warranty
