Product Description

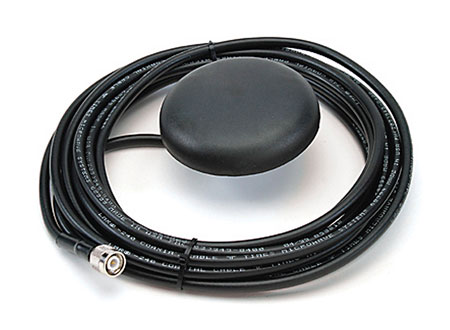

IR-01-AT1621-5 Mobile Permanent Mount Antenna
This Iridium-frequency antenna is designed for land/mobile applications and will work with both voice and data communications systems.
Mounting Profile
The antenna includes a bulkhead connector to allow it to be installed on the roof of a vehicle with only one hole.
This antenna requires a 160mm(0.625 in.) diameter hole in the vehicle rooftop to secure the bolt antenna.
Ground Plane requirement is 260sqcm(40sqin) of metallic surface..
Physical
Cable Type: LMR240
Cable Length: 5.0m(197in)
Connector: TNC-Male
Operating Temperature: -40°C to +70°C(-40°F to +158°)
Diameter: 89.66mm(3.53in)
Height: 21.08mm (0.83in)
Weight: 510g(1lb 2oz))
Technical
Impedance: 50 OHMS
VSWR: less than 2:1
Iridium Frequency: 1616 – 1625.5 MHz
Polarization: Right Hand Circular
Direction: Omnidirectional
Axial Ratio: 4 dB Max
Iridium Network Certified Product
RoHS compliant
Made in USA by Aero Antenna
