Product Description

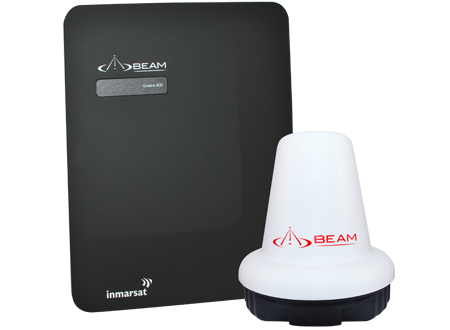

IN-00-OC400 Oceana 400 Marine Satellite Telephone System Terminal with ISD710 Active Antenna
Designed to operate with the Inmarsat “FleetPhone” service and is supplied with a dedicated active marine grade antenna system to provide a complete integrated solution that is ready for use anytime.
In-built intelligence to support standard ring, busy and dial tones.
Application
. Cargo Vessels
. Cruise Ship
. Ferry Transports
. Fishing vessels
. Leisure / pleasure boats
. Luxury Yacht
. Search and Rescue
. Marine – Exploration Oil, Gas and Drilling Rigs
. Crew Calling
. Captain Calling
## Requires Plain/Standard Corded, Cordless Telephone, DECT, or PABX connection to enable RJ11/POTS Supported Features
Requires Optional ISD Active Antenna Kit – NOT included – as below part#
. ISD932 6m cable kit (Active)
. ISD933 13m cable kit (Active)
. ISD934 18m cable kit (Active)
. ISD935 31m cable kit (Active)
. ISD938 40m cable kit (Active)
. ISD942 50m cable kit (Active)
. ISD943 60m cable kit (Active)
. ISD944 70m cable kit (Active)
. ISD945 80m cable kit (Active)
. ISD946 90m cable kit (Active)
. ISD947 100m Cable Kit (Active)
Overview
IN-00-OC400 Oceana 400 Marine Satellite Telephone System Terminal with ISD710 Active Antenna
DESIGN
. *IP53 rated maritime enclosure
. Compact all-in-one design
. Wall or desk mounting options
. Locking bolt to wall mounting
POWER
. 10 – 32V DC Input
. 110/240V AC Plug pack (included)
INTELLIGENT POTS / RJ11 INTERFACE
. Support up to 600m (2000’) of RJ11 cable runs
. Standard Dial, ring & busy tones
. Integrates easily to PABX System
. Support standard corded, cordless and DECT phones
. Auto-dial & speed dials available
VOICE CALLING FEATURES
. RJ11/POTS interface
. In-built phonebook/contacts
. Privacy handset calling
. In-built handsfree speakerphone
. Access from PABX or other corded/cordless handsets
OTHER KEY FEATURES
. Status LED indication for registration/signal, call and messaging
. USB data access
. Basic SMS support from Falcon application (via USB port)
. Rear access SIM port
. 12 month warranty
* IP53 Main Unit is rated when wall mounted only.
Tech Specs
IN-00-OC400 Oceana 400 Marine Satellite Telephone System Terminal with ISD710 Active Antenna
Power Specifications
Average Power Consumption (Active Antenna Connected) with Current @ 15V, Power: <45mW
Standby: 0.21A, 3.1W
Transmit: 0.57A, 8.5W
Peak Current: 1.73A, 25.9W
Physical Specifications
Dimensions: 240 x 190 x 53mm(8.0 x 7.5 x 2.1in)
Weight(OC400 Unit Only): 0.58kg(1.280lb)
Environmental
Operating Range: 20°C to 55°C (4°F to 131°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity: < = 75% RH
Transceiver: Inmarsat-4 Satellite, GMR-2 Frequency Bands:
Tx Operating Frequency: 1626.5 - 1660.5 MHz
ISAT Rx Operating Frequency: 1518 – 1565 MHz (Inmarsat)
GPS Rx Operating Frequency: 1565.19 – 1585.65 MHz (GPS)
RF Output Impedance: 50 Ohms
Carrier frequencies: Channel 0 = 1626.525 MHz, Channel 169 = 1660.475 MHz
TX Modulation: GMSK
RX Modulation: OQPSK
Connectors / Interfaces
POTS/RJ11: RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance
Inmarsat Antenna: TNC-Female
GPS Antenna: SMA-Female
10-32V DC: 4-way microFit (AC/DC adaptor, or DC lead)
Privacy Handset Port: RJ9 connector
Configuration /Data: USB Micro
Certifications
Inmarsat Type Approval
FCC
CE Compliance
Electrical Safety
RoHS
Industry Canada
C-Tick
IP54 Rating
5 = Protected against dust limited ingress (no harmful deposits).
4 = Protection against water sprayed from all directions - limited ingress permitted.
* IP53 Main Unit is rated when wall mounted only.
Requires Optional ISD Active Antenna Kit - NOT included - as below part#
. ISD932 6m cable kit (Active)
. ISD933 13m cable kit (Active)
. ISD934 18m cable kit (Active)
. ISD935 31m cable kit (Active)
. ISD938 40m cable kit (Active)
. ISD942 50m cable kit (Active)
. ISD943 60m cable kit (Active)
. ISD944 70m cable kit (Active)
. ISD945 80m cable kit (Active)
. ISD946 90m cable kit (Active)
. ISD947 100m Cable Kit (Active)
