Product Description
STARPAK-SAT-HOLDER-W8-KIT, Extreme Holder Kit, RAM Universal Vehicle Mount with Heavy Duty Suction Cup
IF YOU CAN BREAK IT – WE WILL REPLACE IT – FOR FREE!!
UNBREAKABLE: Composite Holder, and all Powder Coated Marine Grade Aluminum Brackets and Mounts
EXTREME HEAVY DUTY: Design and with Locking Suction Cup so it will not let go of the windscreen in Rough Terrain.
VERSATILE: Supplied with all optional accessories for future needs such as SatPhones, SatNav, SmartPhones, and Radio Devices etc.
The Starpak™ universal satellite phone holder system includes several high-quality adjustable items for easy installation
User friendly left or right hand mounting configuration.
includes installation and assembly quick-guide, with bits and pieces to accommodate all your required mounting options.
The perfect solution that is the best phone mount, car mount, aero mount, motorcycle mount or other applications.
Total Perpendicular Reach from Windscreen to Holder Plate is:
Total Perpendicular Reach from Windscreen to Holder Plate is:
Part# STARPAK-SAT-HOLDER-W4-KIT : 100 to 185mm(4.0 to 7.25in)
Part# STARPAK-SAT-HOLDER-W8-KIT : 100 to 240mm(4.0 to 9.5in)
Overview
STARPAK-SAT-HOLDER-W8-KIT, Extreme Holder Kit, RAM Universal Vehicle Mount with Heavy Duty Suction Cup
This Starpak™ kit is a purpose modified RAM MOUNT Kit to suit and Satellite telephone(may require modification) and universally also accommodates most UHF and Two Way CB Radios, SmartPhones and other hand-Held devices. It arrives to you assembled and ready for immediate use with all optional fittings included.
Includes the following items:

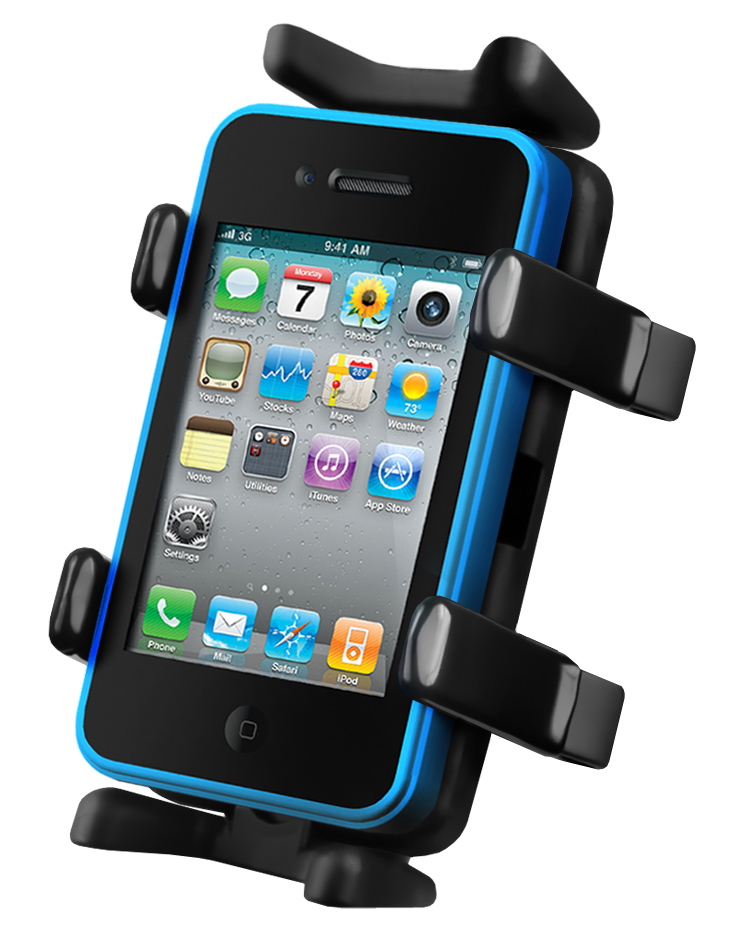

1x RAM-HOL-UN4U Mount Adjustable Rugged Universal Finger Grip Holder Cradle with Composite Universal Finger Grip™ Holder is designed to hold a large amount of cell phones and electronic devices. The holder comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the holder includes a back plate that adds support to the device being held by the mount.
1x RAP-224-1U, suction cup twist lock base contains a standard RAM double hole diamond shaped end. The 3.3″ diameter suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass surface. The diamond shaped end has two holes 1.912″ from center to center. This will connect to RAM-B-238 Diamond Plates Series, the universal industry standard AMPS hole pattern or directly to the back of the RAM Composite HOL Cradles.
1x RAM-B-201UC, standard double socket 5.1875″ arm(total length 6.0in, has a socket at both ends that accommodates 1″ ball bases with a single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.
2x RAM-B-238U consists of a 1″ diameter rubber ball connected at right angles to a 2.43″ x 1.31″ diamond base. The base has two holes 1.912″ from center to center, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles.
Optional permanent fixed mounting plate(not included) RAM 2″ x 1.7″ Base with AMPs and 1″ Ball
The RAM base consists of a 1″ diameter rubber ball connected at right angles to a 2″ x 1.7″ square base.
The base has four pre-drilled holes at each corner, making the universal 1.5 x 1.188 (hole spacing) AMPS hole pattern.
Tech Specs
STARPAK-SAT-HOLDER-W4-KIT
Starpak™ Extreme Vehicle Holder Kit – Overall Specifications
Mounting Height range perpendicular from surface: 100 to 240mm(4.0 to 9.5in)
Total Mount Weight: 474g(16.8oz)
RAP-224-1U, Suction Cup with Twist Lock
Material: High Strength Composite Powder Coated Marine Grade Aluminum
Compatible with RAM-B-238U Diamond Base
Dimensions: 84mm(3.3in) Diameter x 41mm(1.6in) High
Weight: 72g(2.5oz)
RAM-B-238U Diamond base with 25mm(1.0in) Ball
Material: Powder Coated Marine Grade Aluminum
Ball Size: 25mm(1.0in) Rubber Ball “B” Size
Dimensions: Length 61mm(2.4), Wide 33mm(1.3in) x5.5mm(0.2in) High,
Weight: 68g(2.3oz)
RAM-B-201U-C Long Double Socket Arm for 25mm(1.0in) Ball Bases
RAM Double Socket Arm for 1″ Ball Bases
Material: Powder Coated Marine Grade Aluminum
Ball Size: 25mm(1.0in) Rubber Ball “B” Size
Dimensions: Overall Length: 6.0in
Socket-To-Socket Length: 5.2in
Weight: 216g(7.6oz)
RAM-HOL-UN4U Adjustable Rugged Universal Finger Grip Holder Cradle
Material: High Strength Composite
Minimum Height Dimensions with Top and Bottom Plates Fixed: 133mm(5.25in)
Maximum Height Dimensions with Top and Bottom Plates Fixed: 152mm(6.0in)
Spine Plate Dimensions: 63mm(2.5in) Width x 127mm(5.0) Height
Spine Plate Weight: 84g(3.0oz)
Note: The top and bottom plates can be removed for larger devices.
Device Accommodation Using Short Arm Side Clamps:
Maximum Depth: 0.75″
Minimum Width: 1.25″
Maximum Width: 3.0″
Device Accommodation Using Medium Arm Side Clamps:
Maximum Depth: 1.25″
Minimum Width: 1.5″
Maximum Width: 3.5″
Device Accommodation Using Long Arm Side Clamps:
Maximum Depth: 1.6″
Minimum Width: 2.25″
Maximum Width: 3.5″
Total Perpendicular Reach from Windscreen to Holder Plate is:
Total Perpendicular Reach from Windscreen to Holder Plate is:
Part# STARPAK-SAT-HOLDER-W4-KIT : 100 to 185mm(4.0 to 7.25in)
Part# STARPAK-SAT-HOLDER-W8-KIT : 100 to 240mm(4.0 to 9.5in)
Optional Permanent fixed mounting plate(not included)RAM 2″ x 1.7″ Base with AMPs with 1″ Ball
Material: Powder Coated Marine Grade Aluminum
Ball Size: 1″ Rubber Ball “B” Size
Base Dimensions: 51x42x6mm(2.0×1.7×0.22in) square base
Weight:
