Product Description
HOLDER-UNI-W4-KIT, Extreme iPhone, Smart Phone, Vehicle Holder Kit with Heavy Duty Windscreen Suction Cup
IF YOU CAN BREAK IT – WE WILL REPLACE IT – FOR FREE!!
UNBREAKABLE: Composite Holder, and all Powder Coated Marine Grade Aluminum Brackets and Mounts
EXTREME HEAVY DUTY: Design and with Locking Suction Cup so it will not let go of the windscreen in Rough Terrain.
VERSATILE: Supplied with all optional accessories for future needs such as SatPhones, SatNav, SmartPhones, and Radio Devices etc.
The Starpak™ universal satellite phone holder system includes several high-quality adjustable items for easy installation
User friendly left or right hand mounting configuration.
includes installation and assembly quick-guide, with bits and pieces to accommodate all your required mounting options.
The perfect solution that is the best phone mount, car mount, aero mount, motorcycle mount or other applications.
Total Perpendicular Reach from Windscreen to Holder Plate is:
Total Perpendicular Reach from Windscreen to Holder Plate is:
Part# STARPAK-SAT-HOLDER-W4-KIT : 100 to 185mm(4.0 to 7.25in)
Part# STARPAK-SAT-HOLDER-W8-KIT : 100 to 240mm(4.0 to 9.5in)
Overview
HOLDER-UNI-W4-KIT
This Starpak™ kit is a purpose modified MOUNT Kit to suit and Satellite telephone(may require modification) and universally also accommodates most UHF and Two Way CB Radios, SmartPhones and other hand-Held devices. It arrives to you assembled and ready for immediate use with all optional fittings included.
Tech Specs
HOLDER-UNI-W4-KIT
Starpak™ Extreme Vehicle Holder Kit – Overall Specifications
Extension Arm and Mounting Bracket Material: Marine Grade Aluminium
Suction Cup and Cradle Material: High Strength Composite
Mounting Height range perpendicular from surface: 100 to 185mm(4.0 to 7.25in)
Modified and Assembled Mounting Kit Weight: 384g(13.6oz)
Shipping Weight: 600g(21oz) includes unused optional items.

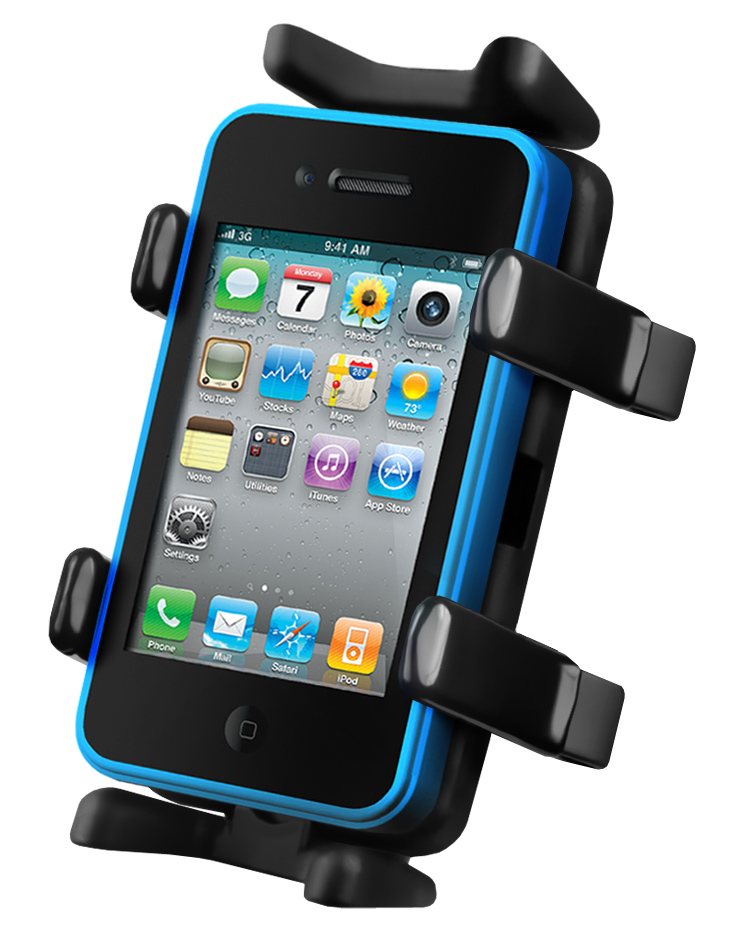

Adjustable Rugged Universal Finger Grip Holder Cradle
Material: High Strength Composite
Minimum Height Dimensions with Top and Bottom Plates Fixed: 133mm(5.25in)
Maximum Height Dimensions with Top and Bottom Plates Fixed: 152mm(6.0in)
Spine Plate Dimensions: 63mm(2.5in) Width x 127mm(5.0) Height
Note: The top and bottom plates can be removed for larger devices.
Generic Device Accommodation Using additional Short Arm Side Clamps as supplied:
Maximum Depth: 0.75″
Minimum Width: 1.25″
Maximum Width: 3.0″
Generic Device Accommodation Using additional Medium Arm Side Clamps as supplied:
Maximum Depth: 1.25″
Minimum Width: 1.5″
Maximum Width: 3.5″
Generic Device Accommodation Using additional Long Arm Side Clamps as supplied:
Maximum Depth: 1.6″
Minimum Width: 2.25″
Maximum Width: 3.5″
