Hughes 9201, 9502 BGAN Basic Fixed Mount Kit
Hughes 9201, 9502 BGAN Basic Fixed Mount Kit

Hughes 9201, 9502 BGAN Basic Fixed Mount Kit

$201.96

HN-01-3004066-0002 Hughes 9201 9502 Basic Fixed Mount Kit
This Basic Mount Kit is a cost effective fixed stand solution for the 9201, 9502 M2M and the NEMA 4x enclosure.
PURCHASE GUIDE – USE THIS KIT FOR:
Option#1. Remote locating the Flat Panel Antenna
NOTE#1. If the Antenna will be subject to severe conditions, ie. Extreme Heat, Ice/snow etc, you will need the NEMA 4x Enclosure as well.
NOTE#2. Distance to the Antenna position is restricted by the 10m(32.8ft) length specific cable kit.
NOTE#3. If you want to external mount your 9201 Terminal, use Fixed Mount Kit part# HN-01-3004066-0001
This kit is designed to support the permanent external/outdoor installation of the Flat panel Antenna

Download Brochure
SKU: HN-01-3004066-0002 Categories: , , , , , , , , , , , ,

Product Description

HN-01-3004066-0002 Hughes 9201 9502 Basic Fixed Mount Kit
This Stand is a simple cost effective solution to externally mount the antenna

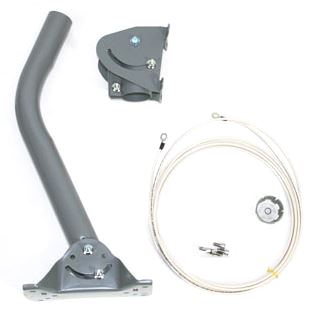

This Pack Includes
• Fixed mount stand kit
• Ground cable
• Level
• Installation Guide

Compatibility
Hughes 9201 series
HN-01-9501286-1 Hughes 9201 External Flat Panel Antenna
Hughes 9502 series
HN-00-3500563-0001 Hughes 9502 Fixed Satellite Terminal
HN-01-3500564-0001 Hughes 9502 Flat Panel Antenna
HN-01-3004134-1 NEMA 4x Enclosure for extreme environments

Tech Specs

HN-01-3004066-0002
You may install the fixed mount on any structurally sound surface; either on a horizontal, or vertical, or a sloped surface such as a roof or wall.
1. The pole has a 1.66” (4.2164cm) outer diameter (schedule 40 metal).
2. The pole mount is 2lbs/0.9Kg.
3. The azimuth/elevation bracket is 1 lb/0.45Kg.
4. The wall mounting pattern has four bolts in a 6” x 3 ¾” (15.24cm x 9.525cm) rectangle.
