$262.72
SS100-G02*
*This pack comes with a Wall A/C power adapter for UK use

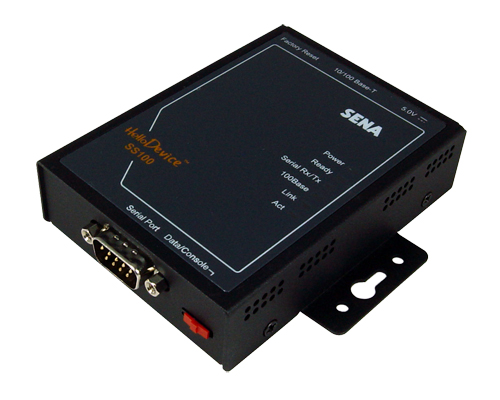

SS100-G01 HelloDevice Super, Single-port Secure Serial Device Server Connects RS-232/422/485 serial devices to 10/100Base-T Ethernet network.
Incorporates advanced features such as such as flexible operation mode, TCP/UDP multicasting, telnet COM port control protocol support (RFC2217 compliant), SSL encryption, and port event handling.
The SS100 is a Single-port secure serial-device server that connects RS-232/422/485 serial devices to the industry standard 10/100Base-T Ethernet network.
The SS100 device servers incorporate advanced features such as such as flexible operation mode, TCP/UDP multicasting, telnet COM port control protocol support (RFC2217 compliant), SSL encryption, and port event handling.
Connects legacy serial devices to 10/100Base-T Ethernet network.
Supports RS232/422/485 based serial devices, up to 230Kbps speed.
Flexible TCP/UDP host mode support: Multiple host connection/data transfer.
Powerful security support, SSL (Secure Socket Layer), RC4 and 3DES.
Easy-To-Use customization support: User space, Library and Scripts (network/port access).
System logging & port logging.
Dynamic DNS and PPPoE protocol for DSL connection to broadband Internet.
Configuration via Web, Telnet/SSH or serial port.
Management software for configuration and administration included.
Surge protector included.
Supports RFC 2217, Telnet COM Port Control Protocol.
Go(scroll-down) to the Reference Table Below……..
| SS100 | CPU | MPC 855T 32-bit RISC CPU, 50Mhz | DRAM | 32 MB | Flash | 8 MB ( 1 MB of user programmable space ) | Serial Interface | 1 port DB9 connector | Serial speeds 75bps to 230Kbps | Hardware RTS/CTS, Software Xon/Xoff | Signals:
RS232: RS232: Rx, Tx, RTS, CTS, DTR, DSR, DCD, GND | Modem controls: DTR/DSR, DCD and RTS/CTS | Network Interface | 10/100Base Ethernet with RJ45 Ethernet connector | Supports static and dynamic IP address | Network Protocols | ARP, IP/ICMP, DNS, Dynamic DNS SMTP with/without Authentication, pop-before SMTP, DHCP client, NTP, PPPoE TCP, UDP, SSL v2 & v3, TLS v1, RFC-2217 SSH v1 & v2,Telnet HTTP, HTTPS, SNMP v1 & v2 | Serial Port Access protocol : Telnet, TCP, UDP, SSL v2 & v3, TLS v1, RFC-2217 | Embedded Linux |
File System :
CRAMFS, JFFS2, NFS, EXT2, VFAT/FAT Utilities : Bash : OS shell command Utilities only for Super Series : ss.apply, ss.filter, ss.portmenu, ss.channel, ss.logger, ss.save, ss.configuration_manager, ss.port, ss.tcp, ss.modemmenu, ss.server_lock, ss.connect, ss.nfs_mount, ss.edit, ss.port_factory_default, port[number]_reset Daemon : snmpd : snmpd agent daemon Tool Chain : Gcc ( V2.95.3 ) : C/C PC Cross Compier | Security | User ID & Password | HTTPS | Secure terminal interface: SSH | Data Encryption: SSLv2/v3, TLS v1, 3DES and RC4 | IP address filtering | SCP | Modem emulation |
Full support for AT commands | Management |
Web | System log and statistics:
System logging to SYSLOG/NFS server | Firmware:
Stored in Flash memory and Downloadable via serial console or telnet or web | Diagnostic LED |
Power | Power | 5VDC, 0.5A @ 5VDC | Environmental | Operating temperature: 0’C to 50’C | Storage temperature: -20’C to 66’C | Humidity: 90% Non-condensing | Physical Properties | 100 x 72 x 25 (mm)3.94 x 2.83 x 0.98 (in.) | DIN-rail mount option | 149.99 Years | MTBF | 149.99 Years | Approvals | FCC Part 15 Subpart B, Class A EN61000-3-2, EN61000-3-3 EN60950-1 EN55022 EN55024 MIC | Warranty | 5-year Limited Warranty |
