$299.00
PS110W-G01*
*This pack has a Wall A/C power adapter for US/EU use

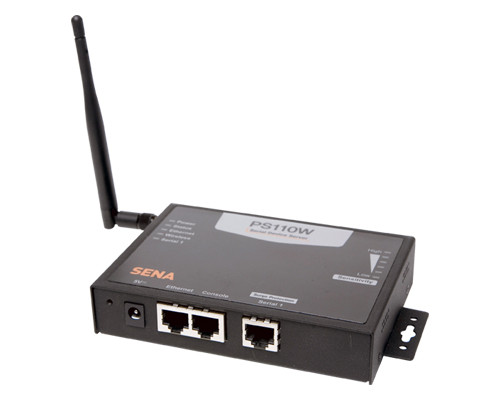

PS110W HelloDevice Pro110 is a single-port wireless device server. product connects RS-232 serial devices to the industry standard 802.11b/g wireless network.
This incorporate advanced features such as WPA2 compliant wireless security, flexible operation mode, TCP/UDP multicasting, telnet COM port control protocol support (RFC2217 compliant), SSL encryption, and port event handling for wireless device networking.
The PS110W is a (x1)single-port wireless device server product line that connects RS-232 serial devices to the industry standard 802.11b/g wireless network.
These device servers incorporate advanced features such as WPA2 compliant wireless security, flexible operation mode, TCP/UDP multicasting, telnet COM port control protocol support (RFC2217 compliant), SSL encryption, and port event handling for wireless device networking. (The PS210W is a 2-port wireless device server)
Connects legacy serial devices to 802.11b/g Wi-Fi or 10/100Base-T Ethernet network.
Supports surge protector for RS232 interface, up to 230Kbps speed : IEC 6100-4-2(ESD) 15kV(air), 8kV(contact)
Flexible TCP/UDP host mode support: Multiple host connection/data transfer.
Powerful security support, 64/128-bit WEP, WPA/WPA2, SSL (Secure Socket Layer), RC4.
System logging & port logging.
Supports Dynamic DNS protocol for DSL connection to broadband Internet.
Configuration via Web, Telnet/SSH, Windows Utility or console.
Supports RFC 2217, Telnet COM Port Control Protocol.
Go(tscroll down) to the Reference Table Below…….
| PS110W | PS210W | Serial Interface | Single-port RJ45 connector | 2-port RJ45 connector | Serial speeds 300bps to 230kbps | Flow Control: Hardware, Software | Signals:
RS232: Rx, Tx, RTS, CTS, DSR, DTR, DCD, GND | Surge protector equipped for each serial port : IEC 6100-4-2(ESD) 15kV(air), 8kV(contact) | Network Interface | 802.11b/g Wi-Fi | 10/100 Base-T Ethernet with RJ45 Ethernet connector | Supports static and dynamic IP address | Protocols | ARP, IP/ICMP, TCP, UDP, Telnet/SSH DNS, Dynamic DNS,HTTP, SMTP, DHCP, SNMP v1 & v2, SSL v3 | Serial Port Access protocol : Telnet, TCP, UDP, SSL v3, RFC-2217 | Ethernet modem | Full AT command set support | Security | 64/128-bit WEP, WPA/WPA2 SSH, SSL, IP address filtering, HTTPS | Management |
Web | Logging | Versatile system logging support for all system events | Serial port data logging | Firmware | Upgrade using console, telnet/SSH and web | Diagnostic LED | Power, Status, Ethernet, Wireless, Serial1 | Power, Status, Ethernet, Wireless, Serial1, Serial2 | Power | 5VDC, 0.90A@5VDC | Environmental | Operating temperature: 0°C to 50°C | Storage temperature: -20°C to 66°C | Humidity: 90% Non-condensing | Physical Properties | 92 x 128 x 26 (mm) 3.62 x 5.04 x 1.02 ( in.) PS110W:390g PS210W:400g | Working distance | DAT-G01R Antenna – DAT-G01R Antenna up to 100m * DAT-G01R Antenna : 3dBi Default Antenna | MTBF | 31.12 years | 30.42 years | Certification | FCC Part 15 Subpart B, Class A EN61000-3-2, EN61000-3-3 EN60950-1 EN55022 EN55024 Telec | Warranty | 5-year limited warranty |
