$71.56

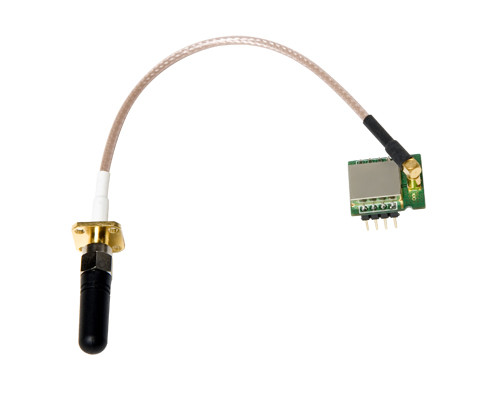

The Parani-ESD210 is a Class 2 type of Compact Embedded Bluetooth Serial Modules for RS-232 cable replacement. By default, it supports 30 meters of wireless transmit distance. The Parani-ESD210 has an antenna extension option so that users can extend the transmit distance up to 300 meters using optional antennas.
The Parani-ESD210 is a Class 2 type of Compact Embedded Bluetooth Serial Modules for RS-232 cable replacement.
By default, it supports 30 meters of wireless transmit distance.
The Parani-ESD210 has an extension option so that users can extend the transmit distance up to 300 meters using optional antennas.
Output Interface UART, Compliant Bluetooth Specification v1.2- improved AFH(Adaptive Frequency Hoping), Fast connection
Transmit Power – ESD200/210 : Max. 4dBm
Receiving Sensitivity – ESD200/210 : -80dBm(0.1¾R)
Compact size – ESD200/210: 18 x 20 x 11.7 (mm)
Provides transparent RS232 serial cable replacement.
Supports Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.
Built-in chip antenna included
Supports firmware upgrade via windows-based software(ParaniUpdater)
Working distance ( In an open field ):
Parani-ESD200: Class 2, Nom. 30meters
Parani-ESD210: Class 2, Nom. 30meters, up to 300m using patch antenna
Easy to use Windows configuration tool available.
No external drivers required.
Go(scroll down) to Reference Table below………
| Parani-ESD200 | Parani-ESD210 | Serial Interface | UART Interface, 2.54mm Header 1x4x2, 1200~230 Kbps | CTS/RTS flow control: Default | Bluetooth Interface | Bluetooth v1.2 Class 2 Level – Max. 4dBm Protocols – RFCOMM, L2CAP, SDP Profiles – General Access Profile, Serial Port Profile Working distance ESD200 : ESD210 : | Max. Tx power | 4dBm | Receive Sensitivity | -80dbm | Antenna gain | Chip : 0dBi, Stub : 2dBi, Dipole : 3dBi, Patch : 9dBi | Configuration | ParaniWin, ParaniWizard, ParaniUpdater | Modem AT command set | Diagnostic LED | Power, TXD, RXD, DCD and DTR LED on Jig board | Power | 3.3VDC Nominal current consumption -ESD100/110 : 70mA @ 3.3Vdc approximately -ESD200/210 : 40mA @ 3.3Vdc approximately | Environmental | Operating temperature: -10’C to 55’C | Storage temperature: -20’C to 70’C | Humidity: 90% Non-condensing | Physical properties | Dimension(LxWxH) – 18 x 20 x 11.7(mm) – 0.7 x 0.78 x 0.47(in.) | Weight: 4g | Weight: 14g | MTBF | 556.53 Years | 562.74 Years | Regulatory Approvals | FCC Part 15 Subpart C Section 15.247 ETSI EN 300 328 ETSI EN 301 489-1 ETSI EN 301 489-17 EN61000-3-2, EN61000-3-3 MIC | SIG QDID | B012681 | Warranty | 1-year Limited Warranty |
