Product Description
This Parani-ESD110V2SK-01 Starter Kit includes 1x ESD110V2 with other kit items(refer to “Whats in the Box” tab above.
The Starter Kit is ideal for setup and evaluation of the ESD110V2 module ONLY.
This provides a simple Bluetooth node for system installers, instrument engineers and product designers, in fact anyone who now uses serial communications in their product. All the engineer needs to do is fit these 8- or 12-pin DIL modules on the PCB, connect the serial lines to the module and voila, an instant Bluetooth interface.

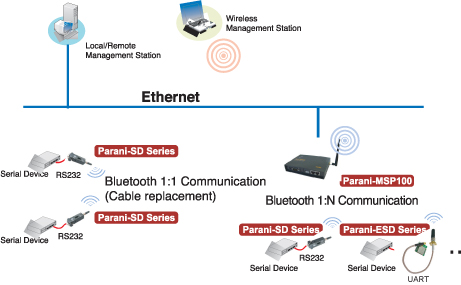

This Bluetooth interface has configurable operating modes and can communicate with any other Bluetooth node such as PDAs, some mobile phones, PC Bluetooth adapters, laptops, or simply talk to each other. As well as being simple to add to hardware, they are simple to setup using the Windows Manager software supplied with the units or by using AT modem commands.
This is a compact Bluetooth v2.0 EDR Class1 type Embedded Bluetooth serial module for RS232 cable replacement that supports 100 meters of wireless transmit distance.
It has an extension option so that users can extend the transmit distance up to 1,000 meters using optional antennas.
The Parani-ESD110V2 also supports up to 4 multiple simultaneous connections.
