Product Description

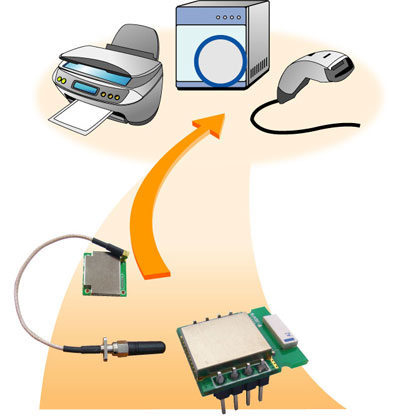

Parani-ESD Series is OEM Bluetooth-Serial Module type product line based on Bluetooth technology. Parani-ESD Series is designed for integration into user devices by on-board installation.
They are connected to the device via built-in UART interface and communicate with other Bluetooth device.
Parani-ESD110 enables RS232-based serial devices to communicate wirelessly throughout the range of 100m ~ 1000m.
Parani-ESD110 has an antenna connector for connecting external antenna. Users can extend Bluetooth communication range by connecting the external antenna to antenna connector.
Users may configure the Parani-ESD Series by using easy-to-use Windows-based utility software or by using standard AT command set.

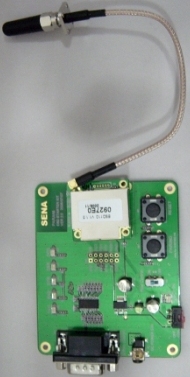

Parani-ESD Starter Kit includes the evaluation board with the sample circuitry for Parani ESD110 interface, power, RS232 Interface, Reset, LEDs, Pairing, H/W flow control for user device development.
Overview
Features – Parani-ESD-110
Output Interface UART, Compliant Bluetooth Specification v1.2- improved AFH(Adaptive Frequency Hoping), Fast connection
Transmit Power – ESD100/110 : Max. 18dBm, ESD200/210 : Max. 4dBm
Receiving Sensitivity – ESD100/110 : -88dBm(0.1¾R), ESD200/210 : -80dBm(0.1¾R)
Compact size – ESD100/110: 27.5 x 27.7 x 14(mm), ESD200/210: 18 x 20 x 11.7 (mm)
Provides transparent RS232 serial cable replacement.
Supports Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.
Built-in On-board antenna included
Supports firmware upgrade via windows-based software(ParaniUpdater)
Working distance ( In an open field ):
Parani-ESD100: Class 1, Nom. 100 meters
Parani-ESD110: Class 1, Nom. 100 meters, up to 1000m using patch antenna
Parani-ESD200: Class 2, Nom. 30meters
Parani-ESD210: Class 2, Nom. 30meters, up to 300m using patch antenna
Easy to use Windows configuration tool available.
No external drivers required.
