$57.24

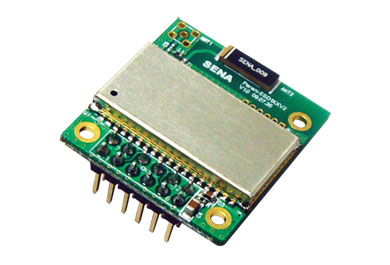

Parani ESD100V2-01 is a Bluetooth v2.0 EDR Class1 type module for RS232 cable replacement with built-in chip antenna.
Supports up to 4 multiple simultaneous connections.
The Parani-ESD100V2 is a Bluetooth v2.0 EDR Class1 type Embedded Bluetooth serial module for RS232 cable replacement. The Parani-ESD100V2 is a compact size Bluetooth serial module with built-in chip antenna. It supports 100 meter of wireless transmit distance. The Parani-ESD100V2 also supports up to 4 multiple simultaneous connections.
| Parani-ESD100V2 | Serial Interface | UART interface, 2.54mm Pin Header 2X6 (12pin) Serial UART speed up to 921.6kbps | CTS/RTS flow control, DTR/DSR for loop-back & full transfer | Bluetooth | Bluetooth v2.0 EDR Class1 Level – 18 dBm Profile : Serial Port Profile Working distance : | Max. Tx power | 18 dBm | Receive Sensitivity | 90 dBm | Configuration | ParaniWIN, ParaniWizard, Modem AT command set | Firmware upgrade | by ParaniUpdater | Power | Supply voltage: 3.3V DC Supply current: 10mA – 60mA | Environmental | Operating temperature : -30℃~ 80℃ Storage temperature : -40℃~ 85℃ Humidity : 90% (Non-condensing) | Physical Properties | Dimension : 27.5 mm L (1.08 in ) 30.0 mm W (1.18 in ) 14.0 mm H (0.55 in ) | Weight : 6g | RegulatoryApprovals | FCC, CE, TELEC, KCC, SIG | SIG QDID | B015896 | Warranty | 1-year Limited Warranty |
