Product Description
AV-00-SHIELD10 Addvalue Wideye Sabre 1 Remote, Shield Fixed BGAN Terminal, with 10m Cable
Included with this pack is:
a) 1x Sabre 1 Remote Terminal pack
b) 1x Sabre Shield and installation pack with
c) 1x 10m multi-function cable
The SABRE™ 1 REMOTE is a dual purpose BGAN terminal
It can be a user terminal with an MMI interface or used for SCADA applications with additional features(to the Sabre 1)such as:
Enhanced firmware for reliable continuous BGAN network connectivity
Remote PDP activation / deactivation via SMS
Reboot terminal via SMS
24/7 Always-on capability
Standard SABRE™ 1 BGAN Features
Simultaneous voice SMS & data communications
Data rate up to 384 kbps
Built-in Ethernet and Analog Phone interfaces
Supports voice, SMS, email, messaging, VPN, FTP, VoIP, FoIP and video media streaming
Designed for non-technical user
Swiveled antenna mount facilitates easy pointing
Simple to use menu interface
Light weight, robust and reliable
IP watchdog
The SABRE™ SHIELD is a protective housing for the Sabre 1 Remote
It provides maximum protection for outdoor installations against all weather conditions.with features such as:

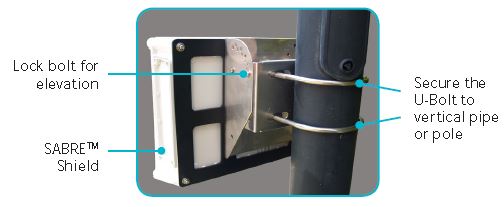

Easy installation with mounting bracket
Single multi function cable
Robust industrial grade connector
Sabre Shield – Specifications:
Material Type: High Impact
Size: 380 x 280 x 130mm
Operating Temp(Shield): -40 to 80degC
Operating Temp(Cable): -40 to 80degC
Operating Humidity: 20% and 90%
Storage Temp: -40 to 80degC
Water and Dust Protection rating: IP66
Overview
AV-00-SHIELD10
SABRE 1 REMOTE
Enhanced firmware for reliable continuous BGAN network connectivity
Remote PDP activation / deactivation via SMS
Reboot terminal via SMS
24/7 Always-on capability
SABRE 1
Ultimate portability – at around half the size of a laptop, it is one of the smallest and lightest terminals in the range.
Simultaneous voice and broadband data – access your data applications and make a phone call at the same time.
Highly flexible – The terminal can be connected to a laptop via the Ethernet port or wirelessly via Bluetooth.
Global coverage – provides service anywhere within the BGAN coverage area.
Easy to use – You can easily access the service using the intuitive icon-based BGAN LaunchPad on your laptop.
Robust – the strong casing means the SABRE 1 can withstand the toughest of environments.
Completely secure – connect seamlessly via your preferred VPN application.
It provides the single-user with a cost-effective voice and high-speed data solution for remote corporate network access.
It is equipped with a range of common interfaces, providing connectivity options in the field and the swiveled antenna facilitates rapid and easy pointing for a satellite connection.
Combined with its sub-laptop size, the terminal is ideal for single users who need to set up a complete broadband mobile office in frequently changing locations.
The Wideye by AddValue combines small size (3.6 lb) with performance and flexibility. Voice communication is available using its corded handset or wirelessly using an optional Bluetooth handset. Standard phone equipment can also be used on its RJ-11 jack
Applications
Remote access – high-speed access to your corporate network, as well as company and customer information.
Internet access – access the internet at speeds up to 384kbps. Email – send and receive email via the internet or email applications.
Telephony – make phone calls at the same time as accessing data applications.
Streaming – select guaranteed quality of service up to 64kbps on demand eg. for video, audio.
File transfer – send and receive large files. Store and forward – save and send files eg. video.
Tech Specs
AV-00-SHIELD10
SABRE 1 REMOTE
Enhanced firmware for reliable continuous BGAN network connectivity
Remote PDP activation / deactivation via SMS
Reboot terminal via SMS
24/7 Always-on capability
Multi-Function Cable: 10m
SABRE SHIELD
Material Type: High Impact
Size: 380 x 280 x 130mm
Operating Temp(Shield): -40 to 80degC
Operating Temp(Cable): -40 to 80degC
Operating Humidity: 20% and 90%
Storage Temp: -40 to 80degC
Water and Dust Protection rating: IP66
SABRE 1
IP data
Standard IP Background class of service
Send: Up to 240kbps over
a shared channel
Receive: Up to 384kbps over
a shared channel
Streaming IP Guaranteed quality of service
Send: 32, 64kbps
Receive: 32, 64kbps
SMS 640 characters via web interface
Voice capabilities
Voice 4kbps
Supplementary Voicemail
services, Call forwarding, Call barring, Call waiting and Call holding
PHYSICAL CHARACTERISTICS
Weight < 1.65kg (3.63lb)
Dimensions Length: 259mm (10.20in)
Width: 195mm (7.67in)
Depth: 58mm (2.28in)
Interfaces RJ-45 Ethernet port
RJ-11 phone port
Bluetooth
- Supported profiles:
- Cordless handset
- Headset
- Serial port
User access Via activated 3G compatible SIM card
User interfaces
PC BGAN LaunchPad
Built-in web interface
On terminal Audio and LCD pointing aids
POWER
DC input 15 – 20 VDC
(power adapter and car charger)
Power adapter Input 100 – 240 VAC, 47 – 63Hz
Output 15 VDC
Battery
Typical use - Transmit time: 1 hr continuous transmission at data rate <= 72kbps
Receive: 3 hrs when receiving only Stand-by time: 36 hrs
Type: Lithium-ion. Rechargeable
Capacity: 2250mAh, 10.8A
Size: 208 x 26 x 25mm
Cables
1x Ethernet cable, IP 54 8P4C, RJ-45 CAT.5, length is 1.5m
1x Phone cable, IP 54 6P4C, RJ11, length is 1.8m
3x Power cords 2-pin Euro-type S, 2-pin US-type, 2-pin EU-type, 3-pin UK-type
TOLERANCES
Operating temperature -20°C to 70°C
(-4°F to 140°F)
Charging temperature 0°C to 45°C
( 32°F to 113°F)
Operating humidity 95% non-condensing
at 40°C ( 104°F)
Storage humidity 5% to 95%
(Relative humidity)
Water and dust IP 54 (dust and spray
proof in all directions)
SUPPORTED OPERATING SYSTEMS
Microsoft Windows 2000, XP
Mac OS 10.1 and above
Redhat 9.0 and above
