Product Description
AV-00-SG5000IPA Wideye, Seagull 5000 with Passive Antenna and 5m cable
The Seagull 5000 is a voice, and data satellite terminal with a built-in GPS tracking system specially designed for reliable performance in the harsh maritime and land environment.
This affordable, easy-to-install and user-friendly terminal enables users to make satellite voice calls to normal PSTN phones, mobile phones and other satellite phones through the Thuraya satellite network.
Besides supporting SMS services through its easy-to-use menu on the large colour LCD screen on the handset, Seagull 5000 provides full-duplex, IP-based data communications capabilities through the Thuraya GmPRS technology.
POLLING and LRIT
These data communication capabilities, coupled with an onboard GPS receiver enables Seagull 5000 to transmit such information as ship’s identity and ship’s position with date and time stamp necessary for long range identification and tracking services that is increasingly being made mandatory by many national maritime and fisheries authorities.
The user can also take advantage of this internet data connection to check emails, weather reports or just simply for web-browsing.
ALERT, TRACKING and MONITORING
Tracking and monitoring functions are user-configurable for fixed time interval or event-triggered operation.
They can also be remotely activated by a monitoring centre.
An Alert button is available to notify pre-configured contacts during an emergency.
When the Alert button is activated, the Seagull 5000i shall immediately send a pre-determined SOS message which includes the time-stamped GPS coordinates of the position to a maximum of three preset contacts for emergency response.
The Seagull 5000 is truly a robust, versatile and cost effective solution for medium-size to small fishing vessels, pleasure boats, patrol boats and any other sea vessels or land vehicles that need a combination of voice telephony, data, fax and tracking functions.
APPLICATIONS
• Fishing vessels, leisure boats, coastal guard boats,
• Coastal surveillance
• Land vehicles, and Remote Buildings etc.
• In-land rural area communications
• Fleet management
• Low data rate telemetry and tracking
Overview
AV-00-SG5000PA
BASE TERMINAL
• One Alert button for triggering an emergency alert to pre-configured contacts via SMS or GmPRS
• External Alert button input port (external Alert button is optional)
• Ringer output port (external ringer is optional)
• Configuration to support Automatic Position Reports(APR) Polling for an on demand position report Geo-fencing. Up to 10 polygon areas can be configured. Sends an alert when the vessel enters or leaves an area
• Internet Access
• Save position logs in device memory for later retrieval
• Over-the-air updates of system configuration parameters
HANDSET:
Supports basic telephony functions, Calling Line Identification Presentation(CLIP) and Short Message Services (SMS)
Phone book retrieval from the SIM card
Call log: last 5 missed, received and dialed calls each with date and time stamps
Menu-driven graphical user interface with 65K colors, 220 x 176 pixels, 2” TFT LCD screen
MMI in English and Chinese
Back-lit keypad
2.5mm Headset jack(for included Hands-free headset)
Wall mounted cradle for the handset
INTERNET ACCESS:
GPS data output in NMEA-0183 format through RS-232 (interface cable is optional)
Over the air update of system configuration parameters

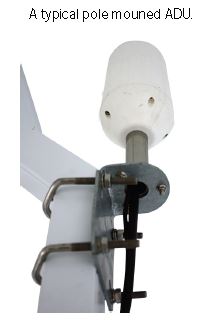

PASSIVE ANTENNA:
Omni-directional passive Thuraya satellite antenna with built-in active GPS antenna
Up to 5mtrs of LMR400 (or equivalent) co-axial satellite antenna cable
ACTIVE ANTENNA:
Omni-directional active Thuraya satellite antenna with built-in active GPS
antenna
Up to 40mtrs of LMR400 (or equivalent) co-axial satellite antenna cable
Note: Active antenna must be used with an external power supply unit
Tech Specs
AV-00-SG5000PA
GENERAL SPECIFICATIONS
Standard IP: Down stream up to 60 kbps, Up stream up to 15 kbps
SMS: up to 160 characters
Ingress Protection Rating: Handset IP66
Antenna IP66
GPS SPECIFICATIONS
Number of tracking channels: 20 (SiRF Star-III)
Position accuracy: <10m 95%
Time to First Fix
Hot start <1 second
Warm start <30 seconds
Cold start <35 seconds
MECHANICAL
Size
Handset [LxWxH]: 142mm x 56mm x 22mm
Handset Cradle [LxWxH]: 147mm x 65mm x 32mm
Base Terminal [LxWxH]: 254mm x 155mm x 55mm
Passive Antenna: 95mm (Dia.) x 150mm (H)
Active Antenna: 210mm (Dia.) x 180mm (H)
Weight:
Base terminal: 1kg
Passive antenna: 300g
Active antenna: 1.7kg
Handset: 290g
Handset Cradle: 55g
Power Supply & Consumption:
DC input range (isolated): 10.8 – 31.2; VDC power (max): 10 W
Ingress Protection Rating:
Handset: IP66; Antenna: IP66
Interfaces:
• Satellite antenna connector (N-Type female) • GPS antenna connector
(TNC female) • Primary handset connector • SIM card connector
• Ethernet port (RJ45) • USB client port (mini-USB connector)
• Four dual color LED indicators • External ringer output port
• External alert button input port
