Product Description

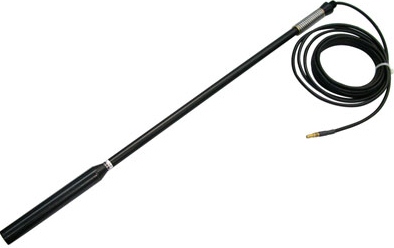

RST714 Antenna
This is a Whip Profile Antenna, is designed to provide high performance and significantly exceeds the antenna performance that is included with the handset.
Allows the SatPhone Handset or Iridium Terminal to be used inside any Vehicle, Vessel or Fixed Building with raised mounting profile above obstructions .
Antenna Cable Basics: 5.0m(16.4ft) base exit Antenna cable tail
Molded Radome mounted on a flexible Polymer pole that will “whip” upon contacting or being impacted by obstacles at speed and not break.
Ideal for use on Cars, Buses, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment.
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Overall Size: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Weight: 566g(20oz)
Mounting Bolt Size: 1x 1/18 threaded
Mounting Hole Size: 17.0mm Dia
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Overview
AT1621-15
Allows the handset or Iridium Terminal to be used inside any Vehicle, Vessel or Fixed Building with raised mounting profile above obstructions .
Cable Basics: 5.0m(16.4ft) LMR240
The antenna radome is securely molded and mounted onto the Polymer pole, and is ideal for use on Cars, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment where it is not desirable to have a fixed mounted antenna that could easily be permanently damaged by branches, birds, or other obstacles impacting a Rigid Antenna
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Tech Specs
AT1621-15 Specifications
Overall Size: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Mounting Bolt Size: 1x 1/18 threaded
Mounting Hole Size: 17.0mm Dia
Weight with cable tail: 566g(20oz)
Frequency: 1616 – 1626 MHz
Finish: Weatherable Polymer Black
Axial Ratio: 3.0db Max at bore sight
Impedance: 50 OHMS
VSWR: < 2.0 : 1
Power handling: 20 Watt
Altitude: 20,000’
Connector: SMA-Male
Colour: Black
Operating Temp: Celsius -40° to 85° or Fahrenheit -40° to 185°
Polarization: Right Hand Circular
Cable: Includes 5m or 16.4 feet of LMR240 attached
Manufactured by Aero Technologies, CA USA
