Product Description
61RIR16RR-P-39SF-4 Antenna Kit
This Kit featuring a Helix Hi-Gain Antenna, is designed to provide highest performance of all antennas and significantly exceeds the antenna performance that is included with the handset.
Allows the handset or Iridium Terminal to be used inside any Vehicle, Vessel or Fixed Building with raised mounting profile above obstructions .

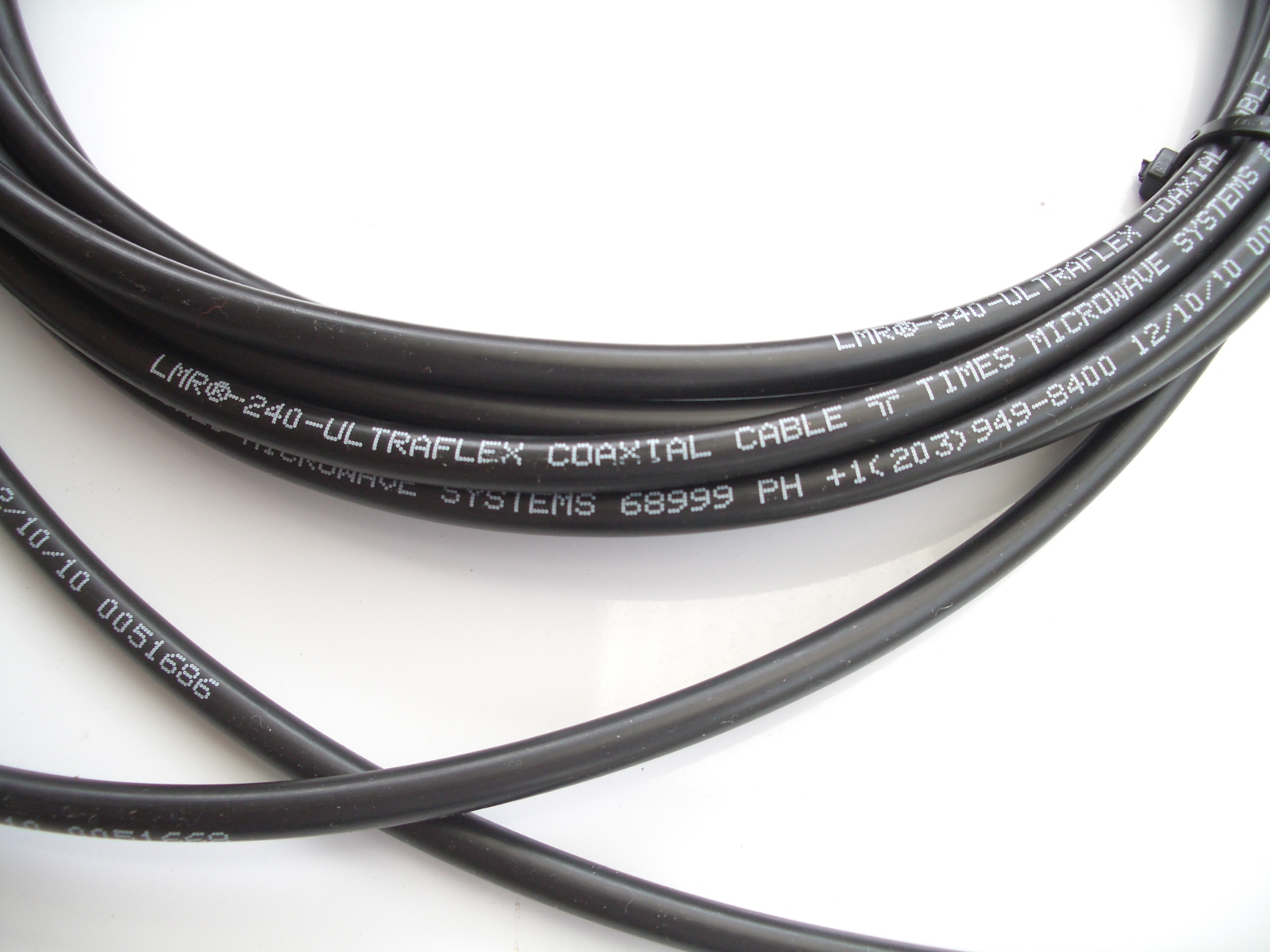

Cable Basics: 1x 4.5m(14.7ft) LMR240 UltraFlex cable with TNC/M to SMA/Male Connectors
Antenna Cable Basics: 1x 1.0m(3.3ft) base exit Antenna tail cable hermetically sealed into Anodised Aluminum Antenna Pole Body, and terminated with SMA/Female connector
This is a High-Performance Helix Hi-Gain Antenna within a molded Radome securely and hermetically mounted on a flexible Aluminum pole that will “whip” upon contacting or being impacted by obstacles at speed and not break.
The antenna radome is securely molded and mounted onto the pole, and is ideal for use on Cars, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment where it is not desirable to have a fixed mounted antenna that could easily be permanently damaged by branches, birds, or other obstacles impacting a Rigid Antenna
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Overall Size: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Mounting Bolt Size: 1x 1/18 threaded
Mounting Hole Size: 17.0mm Dia
When changing vehicles, instead of costly cable recovery, the 4.5m cable extension section can be left insitu instead because the cable usually gets damaged in the process.
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Overview
61RIR16RR-P-39SF-4 Antenna Kit
This Kit featuring a Helix Hi-Gain Antenna with 1m(3.3ft) cable tail, is designed to provide highest performance of all antennas and significantly exceeds the antenna performance that is included with the handset.
Allows the handset or Iridium Terminal to be used inside any Vehicle, Vessel or Fixed Building with raised mounting profile above obstructions .
Cable Basics: 1x 4.5m(14.7ft) LMR240 UltraFlex cable with TNC/M to SMA/Male Connectors
Cable Extension is a 4.5m LMR240 Ultraflex for convenient cable entry through Fire Walls and Bulk Heads.
When changing vehicles, instead of costly cable recovery, the cable extension can be left insitu instead because the cable usually gets damaged in the process.
This is a High-Performance Helix Hi-Gain Antenna within a molded Radome securely and hermetically mounted on a flexible Aluminum pole that will “whip” upon contacting or being impacted by obstacles at speed and not break.
The antenna radome is securely moulded and mounted onto the pole, and is ideal for use on Cars, SUV’s, Trucks and Heavy Transport or Earth Moving Equipment where it is not desirable to have a fixed mounted antenna that could easily be permanently damaged by branches, birds, or other obstacles impacting a Rigid Antenna
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Tech Specs
61RIR16RR-P-39SF-4 Technical Specifications
Cable Basics: 1x 4.5m(14.7ft) LMR240 UltraFlex cable with TNC/M to SMA/Male Connectors
Antenna Cable Basics: 1m(3.3ft) base-exit Antenna tail cable hermetically sealed into Antenna Body terminated with SMA/Female connector
Overall Size: 720mm(28.8in), being Radome 166x25mm(6.6×1.0in), Pole 454x12mm)18.1×0.5in), Spring Base 100x25mm(4.0×1.0in)
Mounting Bolt Size: 1x 1/18 threaded
Mounting Hole Size: 17.0mm Dia
Weight with cable tail: 375g
Manufactured in USA
